0-9 9V 3A Step Down Transformer

0-9 9V 3A Step Down Transformer.

0-9 3Amp Step Down Transformer is a general purpose chassis mounting mains transformer. Transformer has 230V primary winding and non-center tapped secondary winding. The transformer has flying colored insulated connecting leads ( Approx. 100 mm long ). The Transformer act as step down transformer reducing AC 230V to AC 9V.

Click here view all range transformers

The Transformer gives outputs of 9V and 0V. The Transformer’s construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the winding.

Specifications :-

• Input Voltage:          230V AC
• Output Voltage:         9V or 0V
• Output Current:         3 Amp
• Mounting:                 Vertical mount type
• Winding:                   Copper

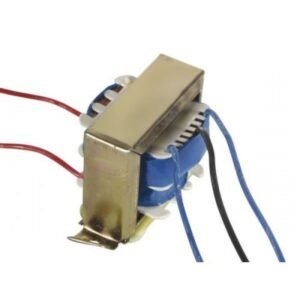

*product image for illustration purposes only. actual product may vary.
