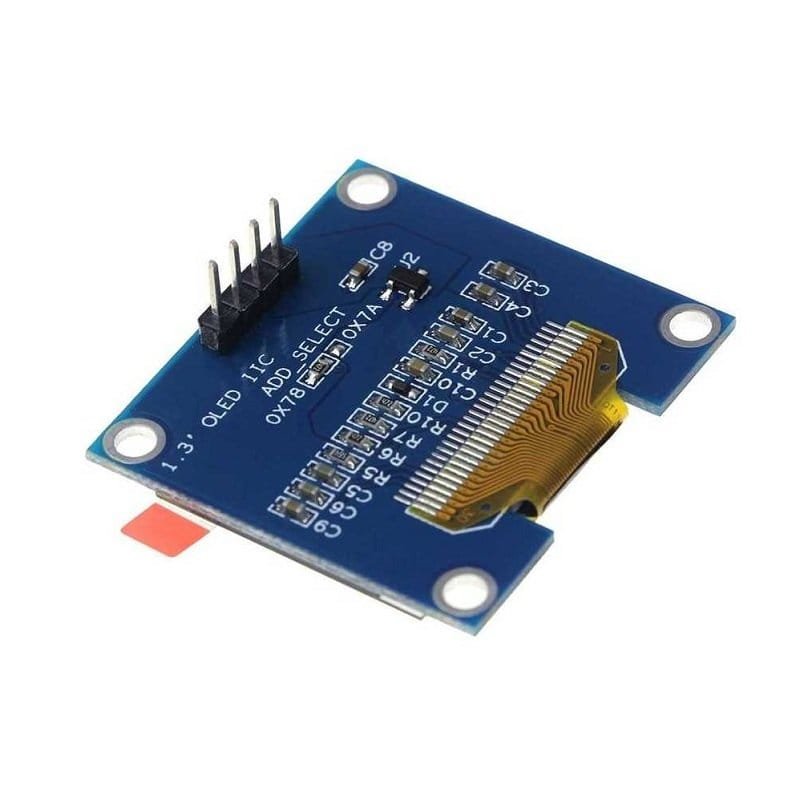

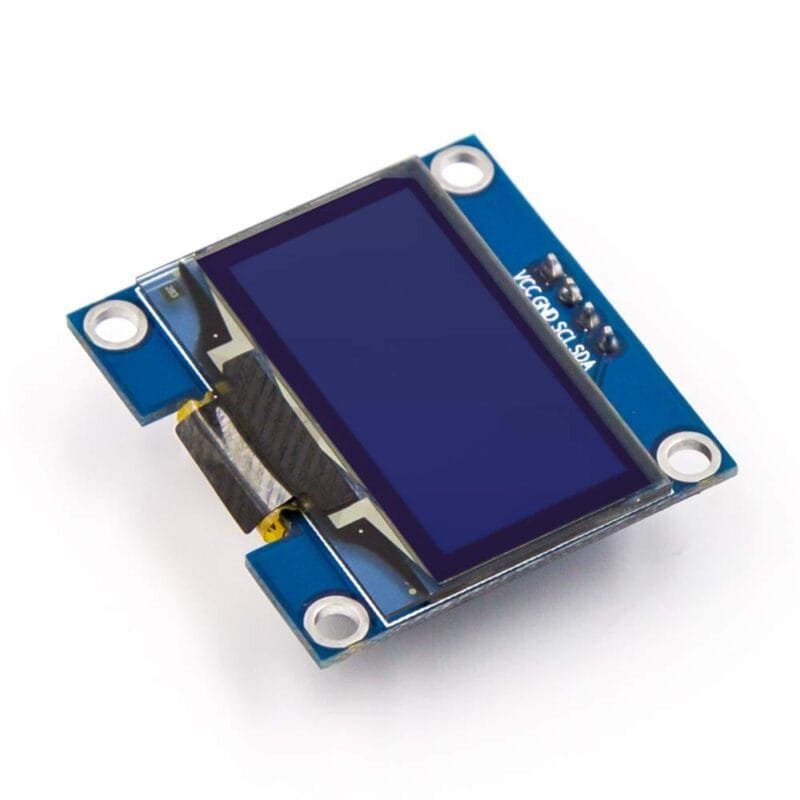

1.3 Inch I2C IIC 128×64 OLED Display Module 4 Pin – White

This 1.3 I2C OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.

Pin Definition:

1.GND: Power ground
2.VCC: Power positive
3.SCL: Clock wire
4.SDA: Data wire.

specifications:-

Display Size                            1.3 inch
Resolution                              128 x 64 Pixels
Controlling Chip                     SSH1106
Display Area                           34.5 x 19mm
Driving Voltage                      3.3-5V
Operating Temperature        -40~70 Celsius
Interface Type                        IIC
Pixel Color                             White
Length (mm)                         35.5
Width (mm)                          33.5
Height (mm)                          4
Weight (gm)                          7

* product image for illustration purposes only. actual product may vary.
