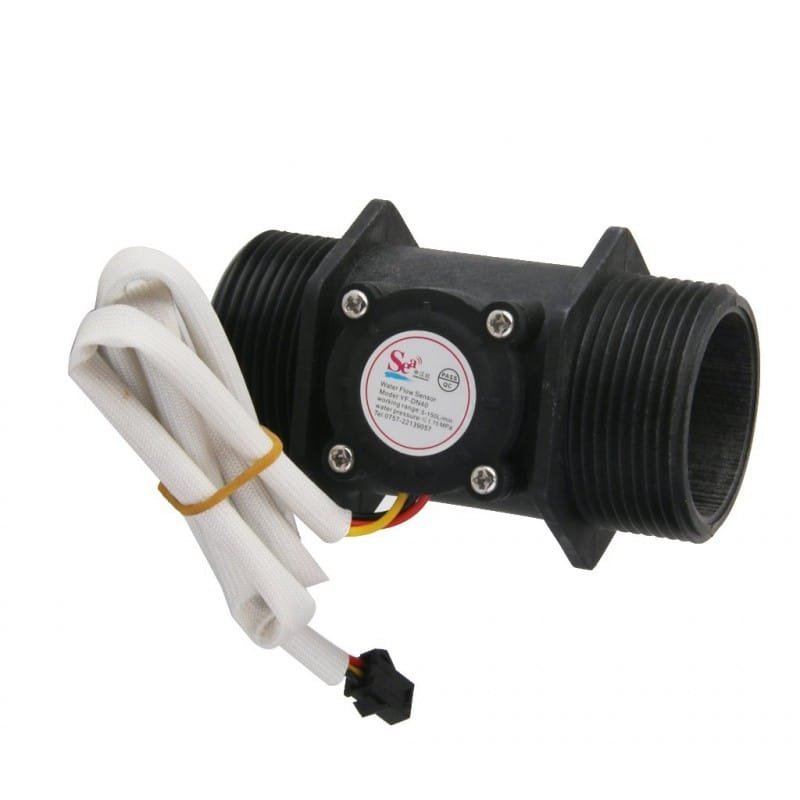

1.5 inch Water Flow Sensor – YF-DN40

1,099.00 Excluding tax

Spread the components

YF-DN40 1.5 inch is a plastic body water flow sensor that contains a water rotor and a hall-effect sensor and is used for flow measurement for industrial application . When the water flows through the rotor, rotor rolls and the speed of it changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

The output of the flow sensor is proportional to the water flow. The more the water flowing more are the pulses.

Features:-

  • Hydrostatic pressure> 1.75MPa meet
  • Operating voltage range DC 5 ~ 24V comply
  • Insulation resistance> 100M> 100M
  • Accuracy in 1 ~ 120L / MIN  ± 2% in line
  • Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet
  • Low temperature test at -20’C temperature placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value in line
  • High-temperature test temperature at 85’C placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value
  • 11/2″ DN40 flow rate 5~150L/min  Plastic Hall Turbine flow sensor meter  switch valve control liquid flow sensor

Specifications:-

  • Product item no. :YF-DN40
  • Material : Plastic
  • Function : Sensor , flow rate control
  • Thread size :  BSP 1 1/2”
  • Size: Length 92mmx outer diameter 46mm X1.5″
  • Color : Black  color

* product image for illustration purposes only. actual product may vary.
