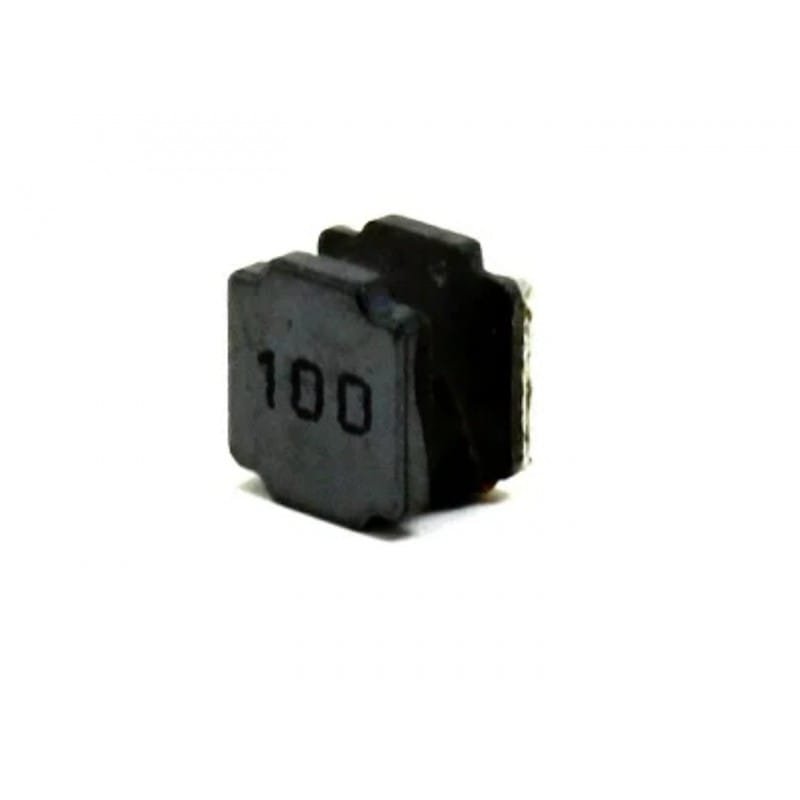

This is an LPS6235-103MLC 10uH 1.4A Coupled Inductor. It is a Coupled Inductor with a low DCR and high rated current surface mount SMD power inductor. These are lead-free products, RoHS compliant. These inductors are widely used in buck converter, laptop, displays, network communication equipment, and etc.
Features:-
- Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
- Metallization on ferrite core results in excellent shock resistance and damage-free durability
- Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
- 30% higher current rating than conventional inductors of equal size
- Take up less PCB real estate and save more power
Specifications:-
| Inductance | 10uH |
| Tolerance(%) | 20 |
| Mounting Type | SMD |
| DC Resistance (DCR)(mΩ) at 20C | 0.07 |
| Current Rating (A) | 1.4 |
| Length (mm) | 6 |
| Width (mm) | 6 |
| Height (mm) | 3.5 |
| Weight (gm) | 0.8 |
* product image for illustration purposes only. actual product may vary.
