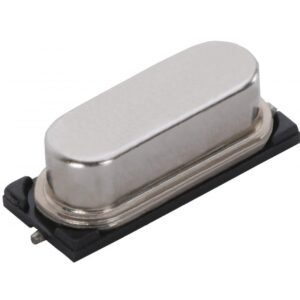

12Mhz Crystal Oscillator HC49/US Package

12Mhz Crystal Oscillator HC49/US Package

The 12MHz Crystal Oscillator (HC49/US Package) is a high-precision frequency component designed to provide stable and accurate timing signals for electronic circuits. Housed in the HC49/US SMD package, it offers compact size, mechanical durability, and easy surface-mount PCB integration. The 12MHz frequency is ideal for microcontrollers, embedded systems, communication circuits, and other timing-critical applications.

Click here to view related products

• Frequency: 12MHz
• Package Type: HC49/US (Surface Mount Device)
• Frequency Tolerance: ±20ppm (typical)
• Load Capacitance: 18pF (standard, check datasheet)
• Operating Temperature Range: ?20°C to +70°C (typical)
• Mounting Type: SMD (Surface Mount)
• Output Type: TTL, CMOS, or as specified
• Applications: Clock generation, timing reference, and frequency synchronization

Applications

• Microcontrollers & Microprocessors: Provides precise 12MHz system clock
• Embedded Systems: Stable timing for digital circuits
• Communication Devices: Reliable frequency source for RF and data circuits
• Consumer Electronics: Timing for audio/video devices, clocks, and timers
• Industrial Equipment & Test Systems: Accurate reference for control and measurement
• DIY & Prototyping Projects: Compact oscillator for PCB development
