16Mhz Crystal Oscillator HC49/US Package

16Mhz Crystal Oscillator HC49/US Package

The 16MHz Crystal Oscillator (HC49/US Package) is a high-precision frequency component designed to provide stable and accurate timing signals for electronic circuits. Encased in the HC49/US SMD package, it offers compact size, durability, and easy surface-mount PCB integration. Its 16MHz frequency is commonly used in microcontrollers, embedded systems, communication circuits, and timing-critical applications.

Click here to view related products

• Frequency: 16MHz
• Package Type: HC49/US (Surface Mount Device)
• Frequency Tolerance: ±20ppm (typical)
• Load Capacitance: 18pF (standard)
• Operating Temperature Range: ?20°C to +70°C (typical)
• Mounting Type: SMD (Surface Mount)
• Output Type: TTL, CMOS, or as specified
• Applications: Clock generation, timing reference, and signal synchronization

Applications

• Microcontrollers & Microprocessors: Provides precise 16MHz system clock
• Embedded Systems: Stable timing and synchronization for circuits
• Communication Devices: Frequency source for RF and data systems
• Consumer Electronics: Audio/video devices, timers, and clocks
• Industrial & Test Equipment: Reliable reference frequency for measurement and control systems
• DIY & Prototyping: Compact SMD oscillator for electronics projects

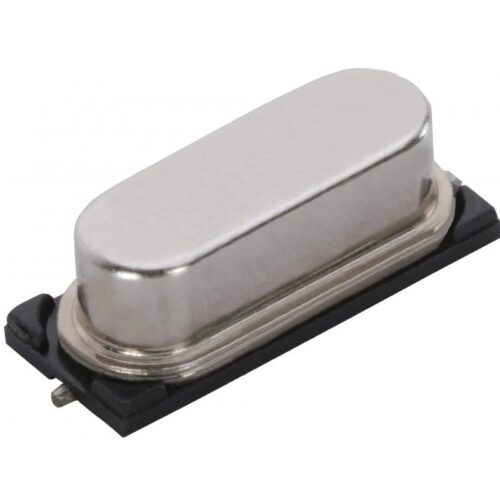

*Product image for illustration purposes only, actual product may vary.
