1800W 40A DC to DC Adjustable Constant Voltage and Current Power Supply Boost converter Module

1800W 40A DC to DC Adjustable Constant Voltage and Current Power Supply Boost converter Module

The 1800W DC-DC boost converter module is a high-power step-up power supply designed to convert a lower DC input voltage to a higher, adjustable output voltage with both constant voltage (CV) and constant current (CC) control. Capable of handling up to 40A current and 1800W output power, this module is ideal for demanding power applications requiring precise voltage and current regulation.

Click here to view related products

Features

• Converter Type: DC-DC Boost (Step-Up)
• Control Mode: Constant Voltage (CV) & Constant Current (CC)
• Maximum Output Power: 1800W
• Maximum Output Current: Up to 40A
• Wide input voltage range (model dependent)

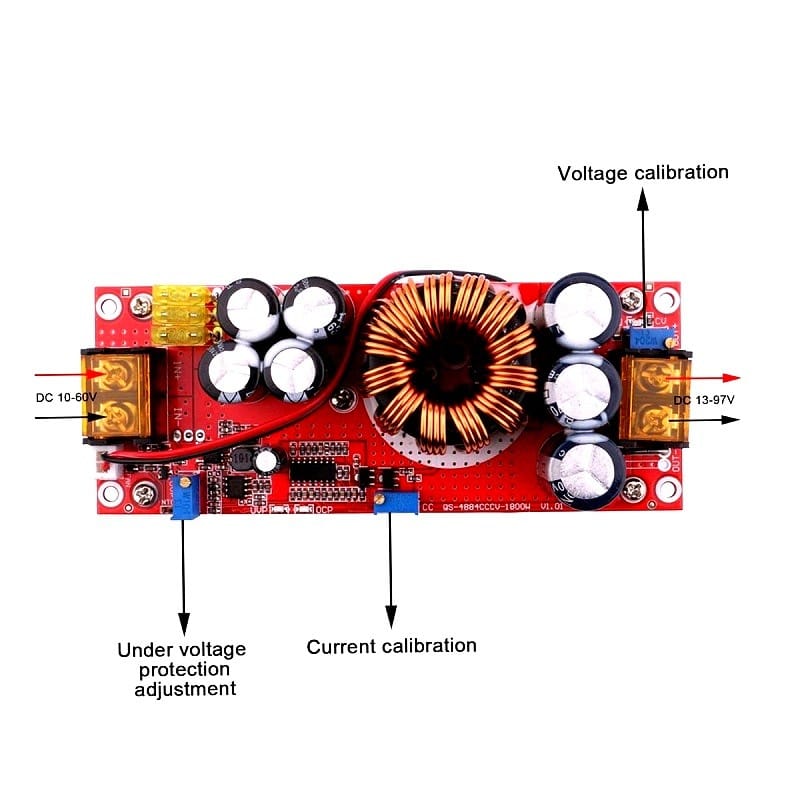

• Adjustable output voltage and current via onboard potentiometers
• High efficiency design
• Over-current and thermal protection support
• Heavy-duty components for high-power operation
• Large heat sink for improved heat dissipation

Applications

• Battery charging systems (lithium, lead-acid, etc.)
• High-power DC power supplies
• Solar energy systems
• Electric vehicle and inverter projects
• Laboratory power regulation
• Industrial and DIY power electronics projects
