Name: 1CH 8A Constant Voltage RF 2.4G Receiver V1 For dimmable led strip lights (LED Dimmer) - ComponentsTree.com
SKU: CT5WBI1
Price: 1078.80 INR
Availability: InStock

1CH 8A Constant Voltage RF 2.4G Receiver V1 For dimmable led strip lights (V1 LED Dimmer)

Mini-style RF dimmer, one channel constant voltage output.
RF dimmer match with a variety of dimming remote, realize functions of switch and dimming.
Smooth dimming and switch without any flickering.
Adopt 2.4GHz wireless technology, remote distance up to 30m.
One RF dimmer can accept up to 10 remote control.
Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.
Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
Can connect with external push switch to achieve on/off and dimming function.
Work with power repeater to expand output unlimitedly.

Technical parameter

Input voltage: 5-36VDC
Output power: 5V, Max 40W 12V, Max 96W 24V, Max 192W 36V, Max 288W
Output current: 1CH, 8A/CH
Size: L97×W33×H18mm

Features

4096 levels 0-100% dimming smoothly without any flash.
Match with Skydance’s 2.4G single zone or multiple zones dimming remote control.
One RF controller accepts up to 10 remote control.
Auto-transmitting function: Controller automatically transmits a signal to another controller with a 30m control distance.
Synchronize on multiple controllers.
Connect with external push switch to achieve on/off and 0-100% dimming function

Dimming data

Input signal: RF 2.4GHz + Push Dim

Control distance: 30m

Dimming level: 4096 levels

Dimming range: 0 -100%

Dimming curve: Logarithmic

PWM Frequency: 500Hz (default)

Push Dim Function

The provided Push-Dim interface allows for a simple dimming method using a commercially available non-latching (momentary) wall switch.

? Short press:

Turn on or off the light.

? Long press (1-6s):

Press and hold to step-less dimming, With every other long press, the light level goes in the opposite direction.

? Dimming memory:

Light returns to the previous dimming level when switched off and on again, even at power failure.

? Synchronization:

If more than one controller is connected to the same push switch, do a long press for more than 10s,

then the system is synchronized and all lights in the group dim up to 100%. This means there is no need for any additional synchrony wire in larger installations. We recommend the number of controllers connected to a push switch does not exceed 25 pieces,

The maximum length of the wires from push to the controller should be no more than 20 meters.

V1 LED Dimmer Datasheet

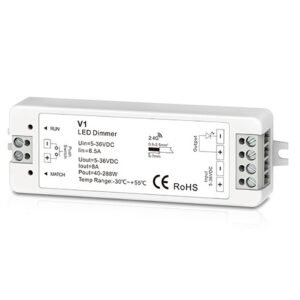

*product image for illustration purposes only. actual product may vary.
