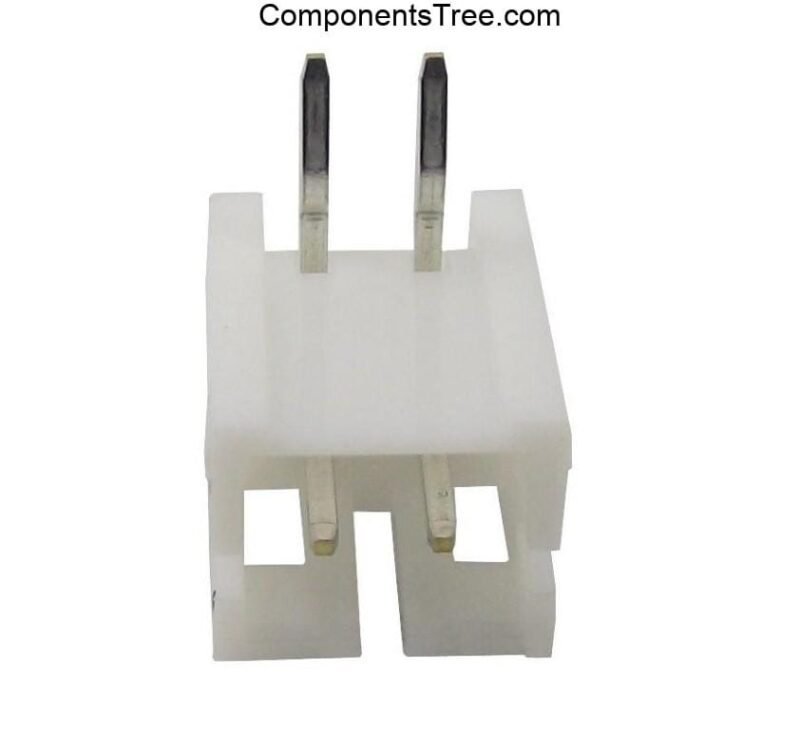

2 Pin JST-XH Male Right Angle 2515 Connector 2.54mm Pitch

2 Pin JST-XH Male Right Angle 2515 Connector 2.54mm Pitch.

JST-XH 2 Pin Connector (2 Pin Male Relimate Polarized Connector) Polarized connectors and headers for your perf board/PCB projects. Use these connectors for power connections or any sensor/general connection to prevent users from connecting the peripheral incorrectly or reversed. The connector comes with a compatible male connector that mates with it in only one orientation. The male connector has a spacing of 0.1?(2.54 mm) and can be easily soldered onto a standard prototype board.

Click here to view related products

Specifications:

• Part No: 2515
• Current Rating: 3A
• Voltage Rating: 250V
• Connector Type: Header
• Contact Type: Male Pin
• Operating Temperature: -25°C ~ 85°C
• Mounting Type: Through Hole
• Number of Positions: 2
• Number of Rows: 1
• Pitch: 2.54mm

*product image for illustration purposes only. actual product may vary.
