2SC5198 Audio Power Transistor.

The 2SC5198 is a high-performance NPN bipolar junction transistor (BJT) specifically designed for audio frequency power amplification and high-fidelity amplifier applications. It is commonly used in power output stages of audio amplifiers and is often paired with its complementary PNP transistor 2SA1941 for push-pull amplifier configurations, ensuring efficient and symmetrical signal amplification.

Specifications:

• Transistor Type: NPN
• Collector-Emitter Voltage (Vce): 160V
• Collector Current (Ic): 10A
• Power Dissipation (Ptot): 100W (with heatsink)
• Transition Frequency (ft): 30 MHz
• Package: TO-3P
• Complementary Pair: 2SA1941 (PNP)

Features:

• High voltage and current handling capability
• Excellent linearity for low distortion audio output
• Fast switching speed and high transition frequency
• Rugged TO-3P package with low thermal resistance
• Ideal for parallel and complementary amplifier circuits

Applications:

• High-power audio amplifiers
• Class AB amplifier output stages
• Home theater and hi-fi sound systems
• Professional audio equipment

Click here to view 2SA1941

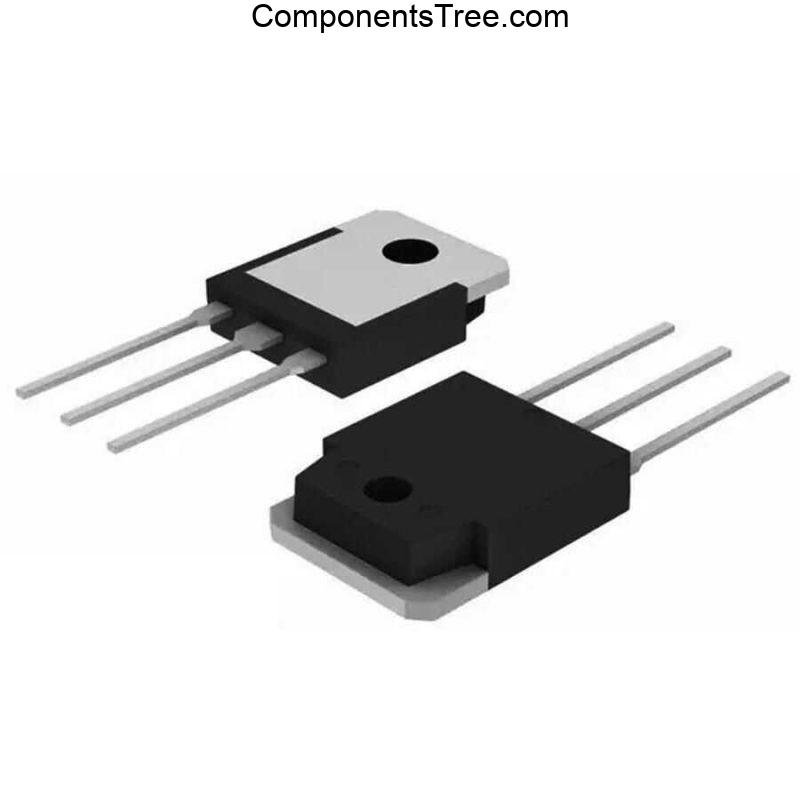

*product image for illustration purposes only. actual product may vary.
