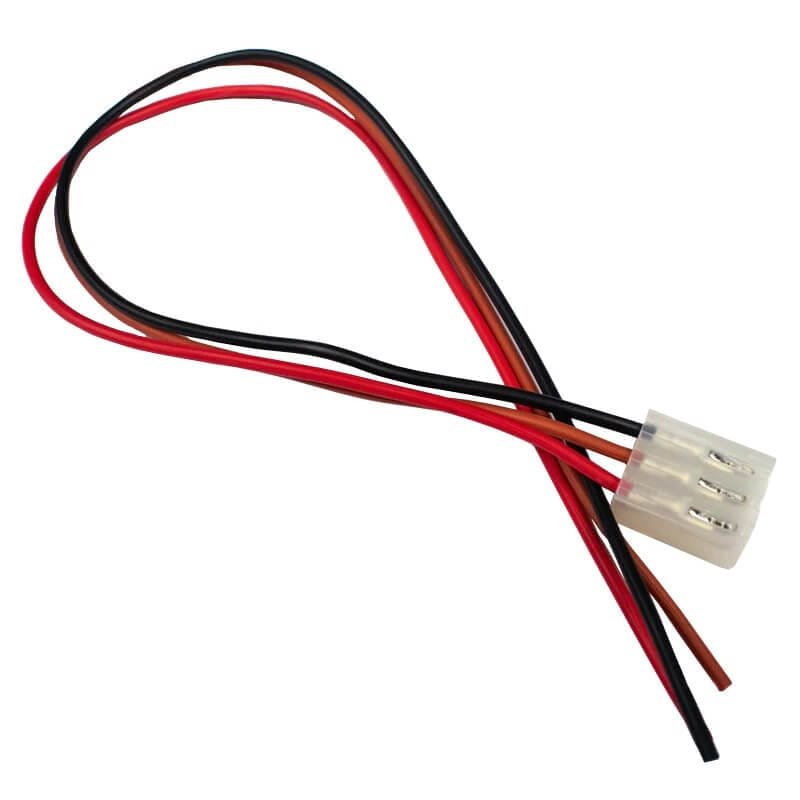

3 Pin Molex KK396 CPU 3.96mm Pitch Female Connector with 30cm Wire

3 Pin Molex KK396 CPU 3.96mm Pitch Female Connector with 30cm Wire.

3 Pin Molex KK396 CPU 3.96mm Pitch Female Connector with 30cm Wire, CH Female Top Entry Connector 3.96mm Pitch The CH series is 3.96mm pitch, single row Female for use with housing CH series crimp contacts. The contact retention lances on the housing allow visual confirmation of contact lock-in for easy and secure insertion.

Click here to view related products

Specfications:

• Connector Type: JST CH
• Contact Material: Phosphor Bronze
• Contact Plating: Nickel
• Gender: Female
• Pitch: 3.96mm
• Max Operating Voltage: 600 VAC
• Current Handling Capacity: 7A
• No. of Contact Points: 3
• Wire: 14/38
• Good quality plastic
• Nickel-plated terminals
• Operating Temperature Range: -25 ~ 85°C
• Color: White
• Approx Wire Length: 27 cm
• Product Length: 30 cm
• Approx Weight: 2gm

Applications:

• Industrial
• Consumer Electronics.

*product image for illustration purposes only. actual product may vary.
