3 Pin Toggle Switch 6A SPDT ON-OFF-ON 125VDC and 250VAC

3 Pin Toggle Switch 6A SPDT ON-OFF-ON 125VDC and 250VAC

The 3-Pin SPDT ON-OFF-ON Toggle Switch (6A, 125VDC / 250VAC) is a Single Pole Double Throw (SPDT) three-position toggle switch designed for versatile circuit control. It allows switching between two outputs with a center OFF position, providing flexible operation for multiple applications. The metal lever ensures smooth toggling action, while the robust plastic housing offers insulation and durability.

Rated for 6A at 250V AC and 125V DC, this switch is suitable for medium-power electrical and electronic applications, ensuring reliable performance and long service life.

Click here to view related products

• Switch Type: SPDT (Single Pole Double Throw)
• Operation: ON-OFF-ON (3-position toggle)
• Pins: 3 terminals (Common, Normally Open, Normally Closed)
• Voltage Rating: 250V AC / 125V DC
• Current Rating: 6A
• Mounting: Panel mount with nut and washer
• Construction: Metal lever with plastic insulated body
• Durability: Long mechanical life and consistent operation

Applications

• Motor Control: Directional (forward/off/reverse) operation for DC motors
• Power Selection: Switching between two circuits or power sources
• DIY Electronics: Multi-mode control for custom projects
• Automotive & Marine: Light mode selection, auxiliary control, or polarity switching
• Test Benches: Signal routing or load selection during testing
• Audio & Lighting Systems: Source or mode selection

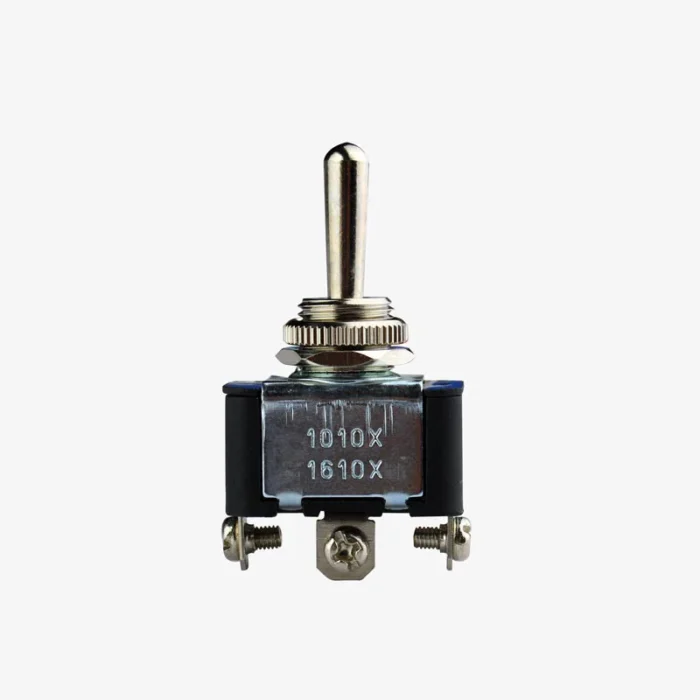

*Product image for illustration purposes only, actual product may vary.
