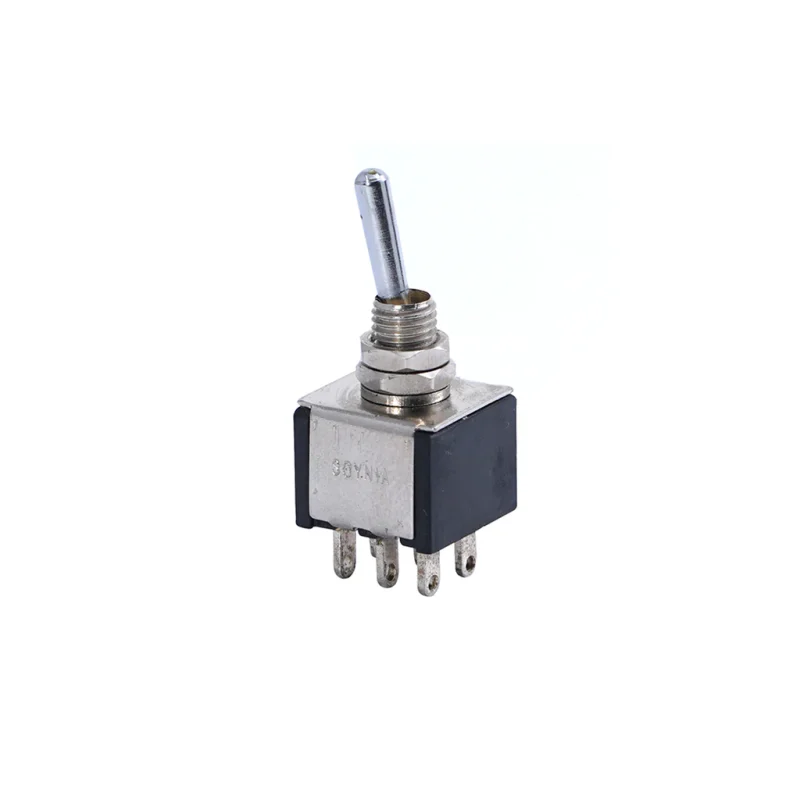

3A 230V AC DPDT ON-OFF Toggle Switch

3A 230V AC DPDT ON-OFF Toggle Switch

A 3A 230V AC DPDT ON-OFF Toggle Switch is a Double Pole Double Throw (DPDT) mechanical switch rated for 3 Amps at 230 Volts AC.

Click here to view related products.

• Double Pole (DP): Can control two separate circuits simultaneously.
• Double Throw (DT): Each pole can connect to one of two outputs, allowing for two switching positions.
• ON-OFF Action: Provides a simple ON/OFF control, disconnecting the circuit when OFF and connecting when ON.
• Toggle Mechanism: Operated manually by flipping a lever (toggle), offering a positive tactile feel.
• Mounting Style: Usually panel-mount, with solder lugs or screw terminals for wiring.
• Durability: Mechanical lifespan in the range of 10,000–50,000 cycles, depending on the quality.

Applications

• AC Power Control: Switching AC loads up to 3A at 230V, such as lamps, fans, or small appliances.
• Polarity Reversal: Used for DC motor direction control (by reversing polarity).
• Signal Routing: Selecting between two signal paths in electronic test setups.
• Industrial Equipment: Start/stop or mode selection in control panels.
• Household Appliances: Power ON/OFF switch for small electrical devices.
• DIY/Projects: Common in robotics, model railways, and hobby circuits for switching between two modes or sources.
