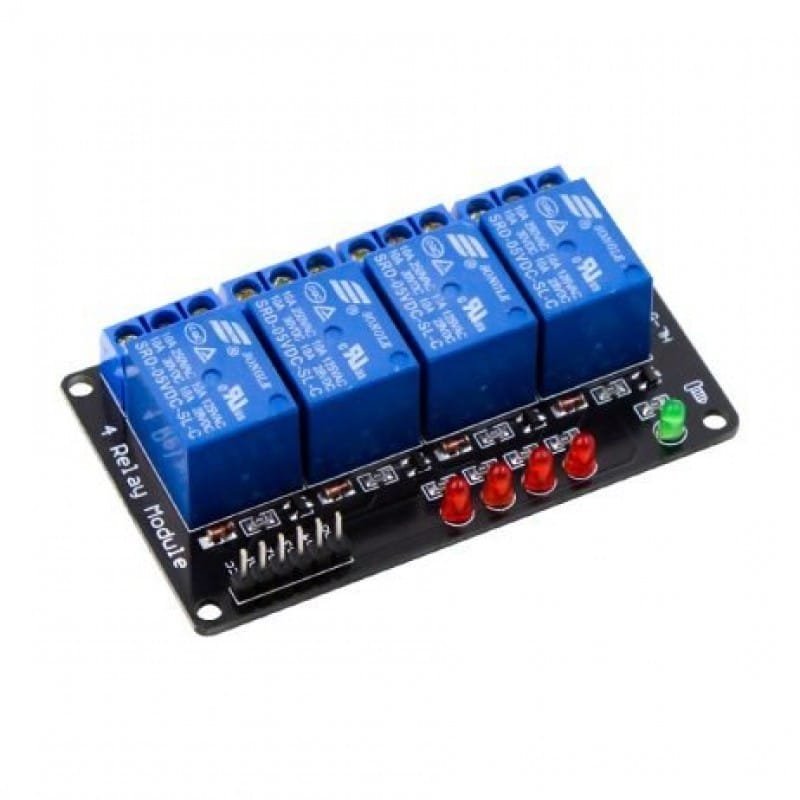

4 Channel 5V Relay Module

184.00 + GST

Share with Friends

This is a 5V 4-Channel Relay interface board, be able to control various appliances and other equipment with large current. It can be controlled directly by Microcontroller (for Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Features:-

  1. 5V 4-Channel Relay interface board and each one needs 15-20mA Driver Current.
  2. Equipped with high-current relay, AC250V 10A; DC30V 10A.
  3. Standard interface that can be controlled directly by microcontroller (for Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
  4. Indication LEDs for Relay output status.

Specifications :-

Operating Voltage (VDC) 3.3 ~ 5
Trigger Voltage (VDC) 5
Trigger Current (mA) 20
Switching Voltage (VAC) 240@10A
Switching Voltage (VDC) 30@10A
Operating Temperature (C) -40 to 85
Opt. Relative Humidity(RH) 20% 85%
Storage condition () 65 to 125
Length (mm) 74
Width (mm) 52
Height (mm) 17
Weight (gm) 50

* product image for illustration purposes only. actual product may vary.
