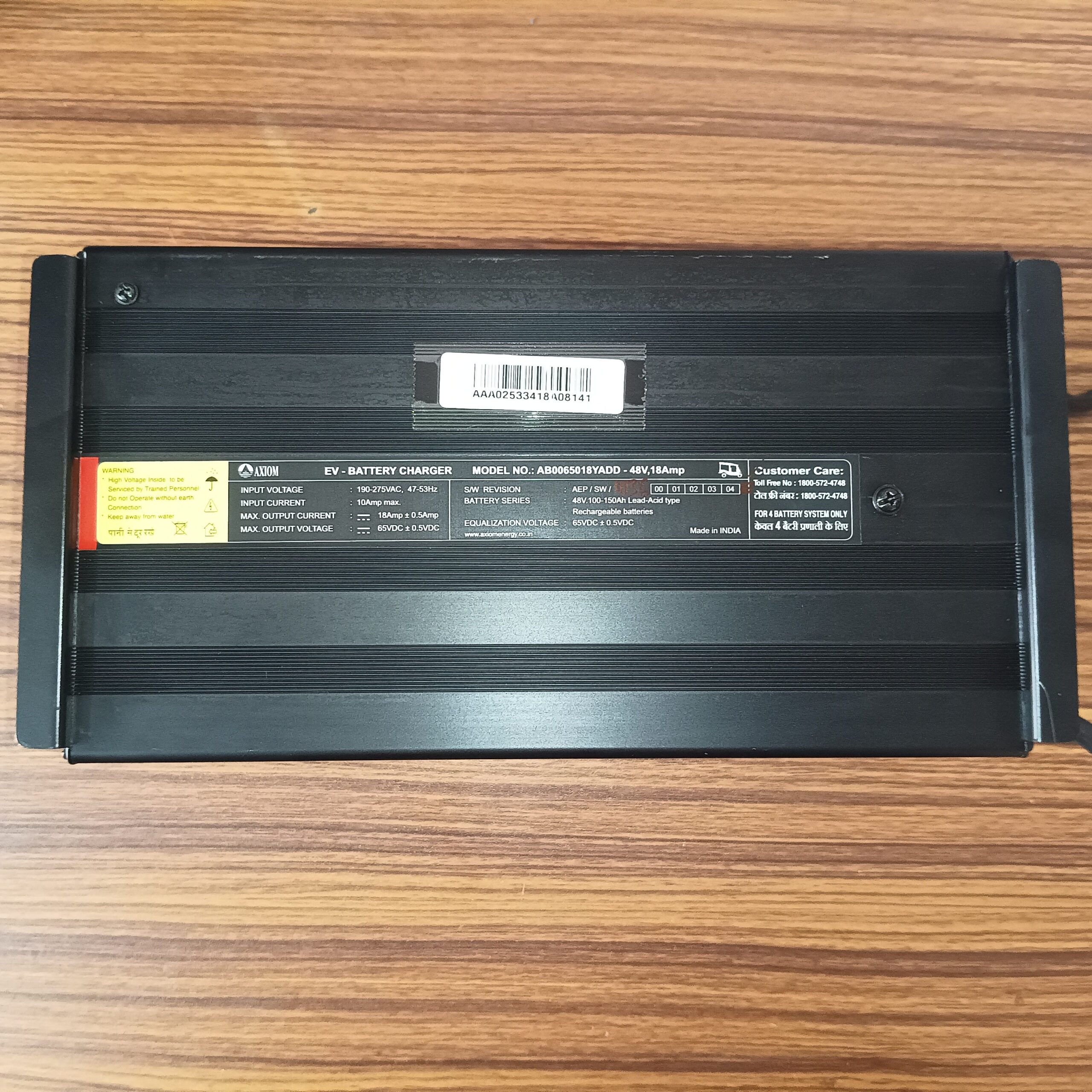

48V 18A Electric Vehicle Lead Acid Battery Charger for Auto E-RICKSHAW (3 Wheeler charger) (Max. Output Voltage 65V)

48V 18A Electric Vehicle Lead Acid Battery Charger for Auto E-RICKSHAW (3 Wheeler charger) (Max. Output Voltage 65V).

• 48V/18A Electric Vehicle Lithium Charger
• Applications: Electric Three Wheelers
• Max Output Voltage: 65V DC
• Lead-acid battery charger
• Battery Series: 48v. 100-150Ah Lead-Acid type
• Make: Axiom
• Warranty: 2 year

Specifications :-

AC Input

• Voltage range : 190-275 VAC
• Nominal voltage :  230 VAC
• Input Current : 10A
• Frequency : 47-53 Hz

Protections

• Output over load : Available
• Output short circuit : Available
• Output over voltage : Available
• Over temp. with auto recovery : Available
• Output reverse polarity : Available

Test Standards

• Surge capability : As per IEC EN61000-4-5
• Die-electric withstand capability : 1.5KVac rms for 60sec with ITrip of 5mA
• Vibration test : As per ISO16750-3
• Bump test : As per IEC 60068-2-29

Environmental

• Operating temperature : 0°C to +50°C

Mechanical

• Indications & Alarms : Bi-color LED with buzzer
• Dimensions : L-194.4mm W-105mm H-55mm
• Weight : 2 kg

*product image for illustration purposes only. actual product may vary.
