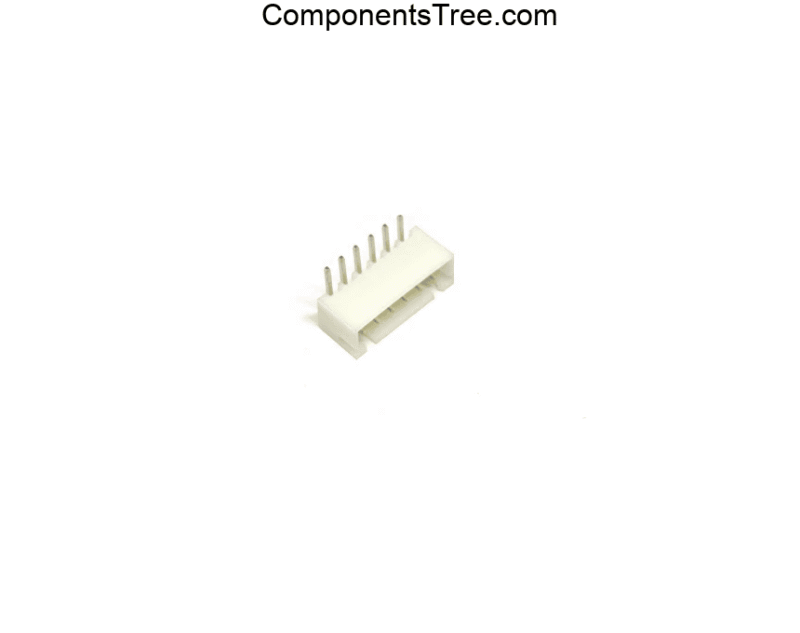

6 Pin JST-XH Male Right Angle 2515 Connector 2.54mm Pitch
₹5.00 (incl. tax)
| Quantity | Price | Discount |
|---|---|---|
| 10-49 | ₹4.50 | 10% |
| 50-99 | ₹4.00 | 20% |
| 100+ | ₹3.50 | 30% |
6 Pin JST-XH Male Right Angle 2515 Connector 2.54mm Pitch.
JST-XH 6 Pin Connector (6 Pin Male Relimate Polarized Connector) Polarized connectors and headers for your perf board/PCB projects. Use these connectors for power connections or any sensor/general connection to prevent users from connecting the peripheral incorrectly or reversed. The connector comes with a compatible male connector that mates with it in only one orientation. The male connector has a spacing of 0.1?(2.54 mm) and can be easily soldered onto a standard prototype board.
Click here to view related products
Specifications:
- Part No: 2515
- Current Rating: 3A
- Voltage Rating: 250V
- Connector Type: Header
- Contact Type: Male Pin
- Operating Temperature: -25°C ~ 85°C
- Mounting Type: Through Hole
- Number of Positions: 6
- Number of Rows: 1
- Pitch: 2.54mm
*product image for illustration purposes only. actual product may vary.
