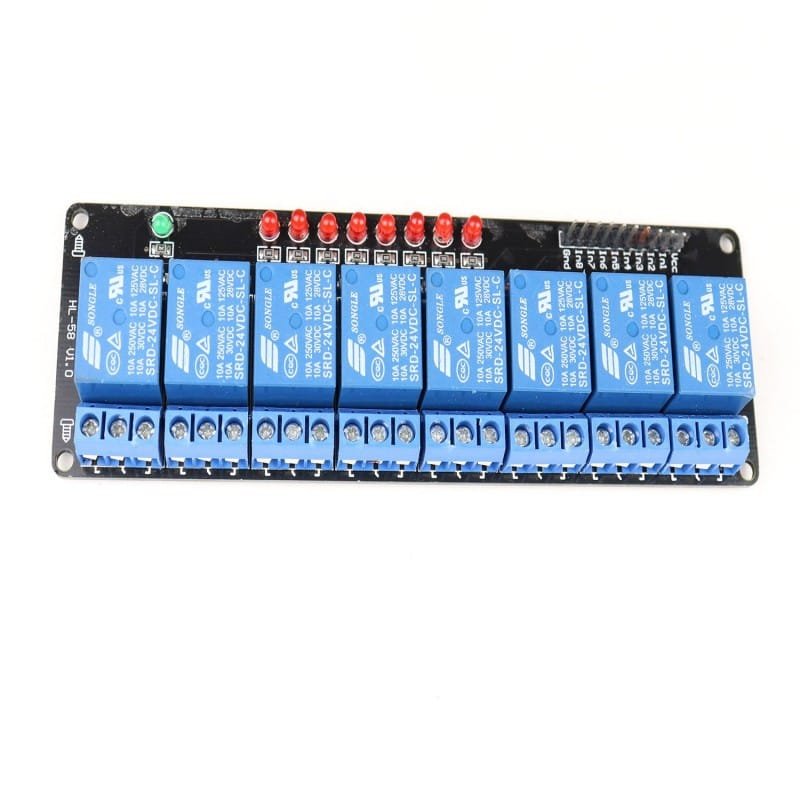

8 Channel 24V Relay Module

478.00 + GST

Share with Friends

A general-purpose 8 SPDT channel relay board (power supply 24VDC) for switching high-current electrical loads (both AC and DC) such as motors, lights, pumps, contactors and more. With this relay board, any logic-level signal from 3V up to 30V can be used to activate a relay (it may be controlled directly by microcontroller TTL logic as well). It can be used successfully for example with PIC, AVR, ARM microcontroller, Raspberry PI, Arduino outputs and others.


  1. Header connector for connecting power and trigger voltage.
  2. LED on each channel indicates relay status.
  3. Screw terminal connector for easy relay output and aux power connection.

Specifications :-

Channel 8
Trigger Voltage (VDC) 24
Trigger Current (mA) 20
Switching Voltage (VAC) 250@10A
Switching Voltage (VDC) 30@10A
Operating Temperature (C) -40 to 85
Opt. Relative Humidity(RH) 20% 85%
Storage condition () 65 to 125
Length (mm) 138
Width (mm) 43
Height (mm) 17
Weight (gm) 100

* product image for illustration purposes only. actual product may vary.
