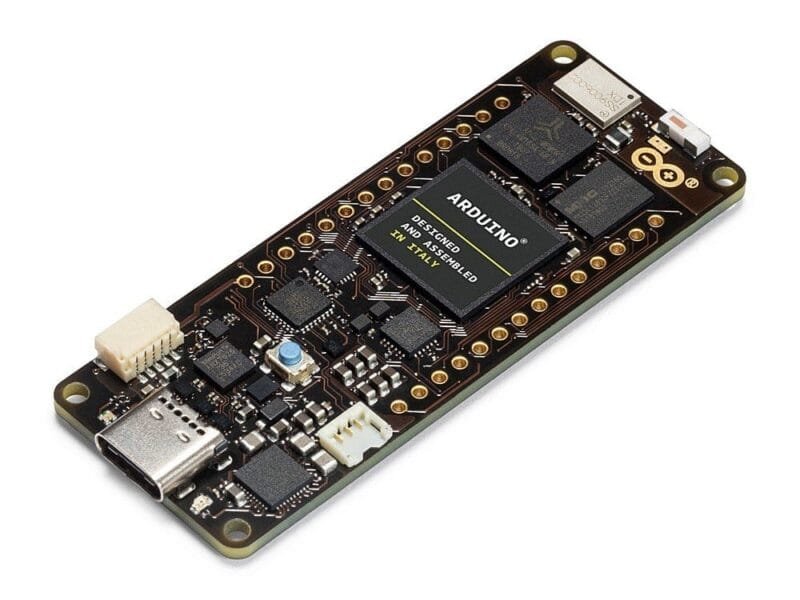

Arduino Portenta H7 Development Board

Arduino Portenta H7 Development Board

The Arduino Portenta H7 is a high-performance dual-core development board designed for industrial, IoT, AI, and embedded applications. Powered by the STMicroelectronics STM32H747 microcontroller, it features both a Cortex®-M7 core (480 MHz) and a Cortex®-M4 core (240 MHz) running in parallel, allowing the execution of high-level code alongside real-time tasks efficiently.

Built for professional and advanced prototyping, the Portenta H7 supports Arduino, MicroPython, and JavaScript programming, offering flexibility for developers across multiple domains. With built-in Wi-Fi, Bluetooth® Low Energy, USB-C, and high-speed I/O, it delivers robust connectivity and scalability for demanding projects.

Click here to view related products

Features

• Dual-core architecture: ARM® Cortex®-M7 (480 MHz) + Cortex®-M4 (240 MHz).
• Memory: 2 MB Flash, 1 MB RAM (512 KB shared, 512 KB for M7).
• Storage: Onboard 16 MB NOR Flash + 8 MB SDRAM.
• Connectivity:
• Wi-Fi 802.11 b/g/n
• Bluetooth® 5.1 (BLE)
• USB-C (OTG and DisplayPort output)
• Ethernet (via expansion)
• Graphics Support: MIPI DSI display interface and GPU acceleration.
• Camera Interface: MIPI CSI for vision applications.
• Rich I/O: 80+ pins including UART, SPI, I²C, CAN, PWM, ADC, DAC, GPIOs.
• Operating Voltage: 3.3 V (5 V-tolerant pins).
• Form Factor: Compact board compatible with Portenta Carrier boards.
• Programming Support: Arduino IDE, MicroPython, Mbed OS.
• Security: Cryptographic co-processor for secure communication and boot.
• Power Options: USB-C, Li-Po battery, or external supply (6–36 V).

Applications

• Industrial automation and control systems
• IoT edge computing and smart sensor nodes
• AI/ML applications and embedded vision
• High-speed data acquisition and logging
• Robotics, drones, and motor control systems
• Secure connected devices and gateways
• Prototyping for advanced embedded systems
