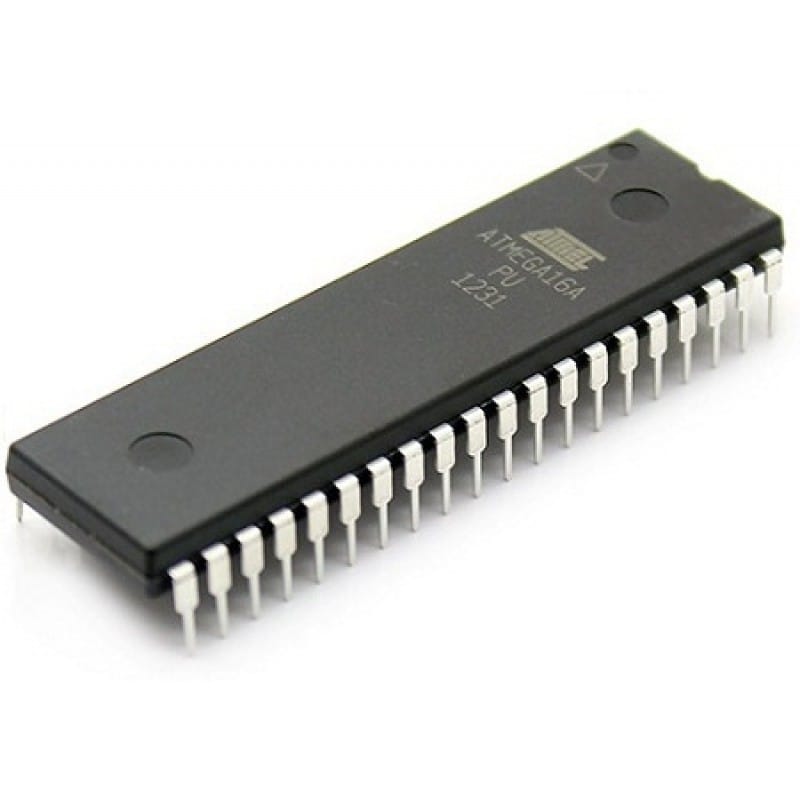

Atmega16A Microcontroller

Atmega16A Microcontroller

The ATmega16A is a high-performance 8-bit AVR microcontroller developed by Atmel (now Microchip Technology). It is a popular member of the ATmega family and is widely used in embedded, industrial, and educational applications.

The microcontroller is based on Harvard architecture with a RISC instruction set, allowing most instructions to execute in a single clock cycle. The ATmega16A integrates Flash program memory, SRAM, EEPROM, multiple I/O ports, timers, ADC, and serial communication interfaces on a single chip, offering reliable performance and flexibility.

Click here to view related products

Features

• 8-bit AVR RISC CPU
• Operating voltage: 4.5 V – 5.5 V
• Maximum clock frequency: Up to 16 MHz
• Program memory: 16 KB Flash
• Data memory:
• 1 KB SRAM
• 512 bytes EEPROM
• I/O pins: 32 programmable digital I/O pins
• Timers/Counters:
• Two 8-bit timers
• One 16-bit timer with PWM
• Analog features:
• 10-bit ADC with 8 channels
• Analog comparator
• Communication interfaces:
• USART
• SPI
• I²C (TWI)
• PWM outputs
• Interrupt system
• Watchdog Timer (WDT)
• Low-power modes: Idle, Power-save, Power-down
• In-System Programming (ISP)
• Available packages: DIP-40 and SMD (TQFP)

Applications

• Embedded control systems
• Industrial automation
• Motor control applications
• Data acquisition systems
• Sensor interfacing
• Robotics and mechatronics
• Home automation
• Educational and student projects
