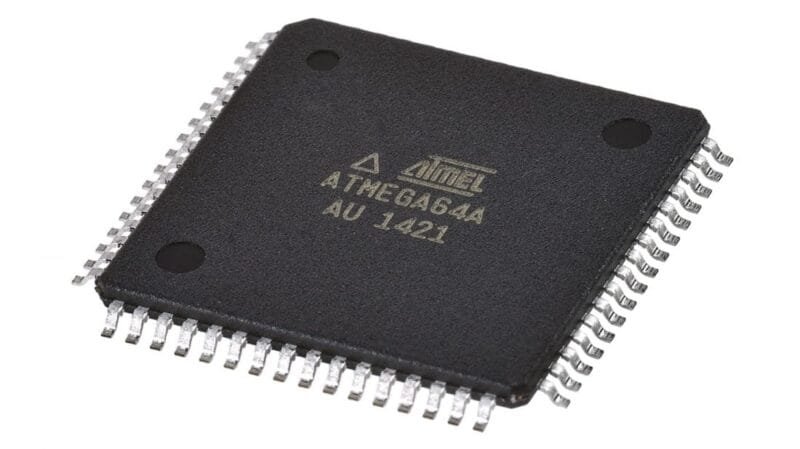

ATMEGA64A AU 8 Bit 64 Pin 64KB Flash Microcontroller SMD TQFP Package

ATMEGA64A AU 8 Bit 64 Pin 64KB Flash Microcontroller SMD TQFP Package

The ATmega64A-AU is a high-performance 8-bit AVR microcontroller manufactured by Atmel (now Microchip Technology). It belongs to the ATmega family and is designed for complex embedded and industrial applications requiring large program memory and extensive I/O capability.

The microcontroller is based on Harvard architecture with a RISC instruction set, enabling most instructions to execute in a single clock cycle. It integrates 64 KB of Flash program memory, SRAM, EEPROM, multiple timers, ADC, and communication interfaces on a single chip.

The AU suffix denotes the 64-pin TQFP surface-mount package, making it suitable for high-pin-count, compact PCB designs.

Click here to view related products

Features

• 8-bit AVR RISC CPU
• Operating voltage: 2.7 V – 5.5 V
• Maximum clock frequency: Up to 16 MHz
• Program memory:
• 64 KB Flash
• Data memory:
• 4 KB SRAM
• 2 KB EEPROM
• I/O pins:
• Up to 53 programmable digital I/O pins
• Timers/Counters:
• Two 8-bit timers
• Two 16-bit timers with PWM
• Analog features:
• 10-bit ADC with up to 8 channels
• Analog comparator
• Communication interfaces:
• USART
• SPI
• I²C (TWI)
• PWM channels
• External memory interface support
• Interrupt system with multiple sources
• Watchdog Timer (WDT)
• Low-power modes: Idle, Power-save, Power-down
• In-System Programming (ISP)
• Package type: SMD TQFP-64 (AU)

Applications

• Industrial automation systems
• Embedded control systems
• Robotics and motion control
• Data acquisition systems
• Communication and networking devices
• Motor control applications
• Consumer and commercial electronics
• Educational and research projects
