ATMEGA8A AU 8 Bit 32 Pin AVR Microcontroller SMD TQFP Package

ATMEGA8A AU 8 Bit 32 Pin AVR Microcontroller SMD TQFP Package

The ATmega8A-AU is an 8-bit AVR microcontroller from Atmel (now Microchip Technology). It belongs to the ATmega family, known for high performance, low power consumption, and versatile peripheral support.

Based on Harvard architecture with a RISC instruction set, the ATmega8A executes most instructions in a single clock cycle, providing efficient processing. The device integrates Flash program memory, SRAM, EEPROM, digital I/O, timers, ADC, and serial communication interfaces on a single chip.

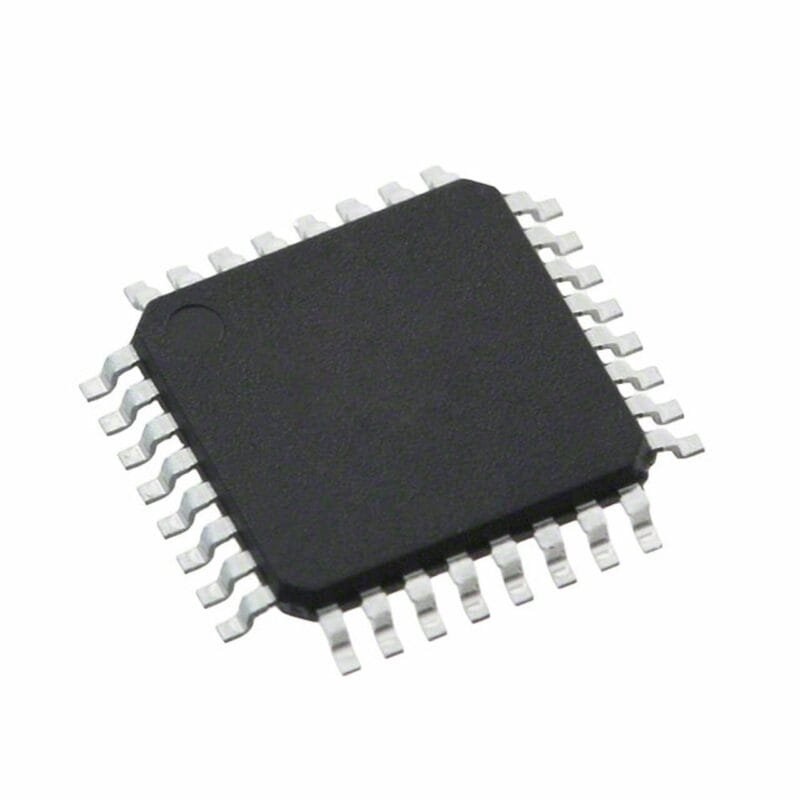

The AU suffix indicates the 32-pin TQFP surface-mount package, making it suitable for compact PCB designs and modern electronic products.

Click here to view related products

Features

• 8-bit AVR RISC CPU
• Operating voltage: 2.7 V – 5.5 V
• Maximum clock frequency: Up to 16 MHz
• Program memory: 8 KB Flash
• Data memory:
• 1 KB SRAM
• 512 bytes EEPROM
• I/O pins: Up to 23 programmable digital I/O pins
• Timers/Counters:
• Two 8-bit timers
• One 16-bit timer with PWM
• Analog features:
• 10-bit ADC with up to 8 channels (TQFP package)
• Communication interfaces:
• USART
• SPI
• I²C (TWI)
• PWM outputs
• Interrupt system
• Watchdog Timer (WDT)
• Low-power modes: Idle, Power-save, Power-down
• In-System Programming (ISP)
• Package type: SMD TQFP-32 (AU)

Applications

• Embedded control systems
• Home and industrial automation
• Motor and relay control
• Sensor interfacing and data acquisition
• Communication-based systems
• Robotics
• Consumer electronics
• Educational and student projects
