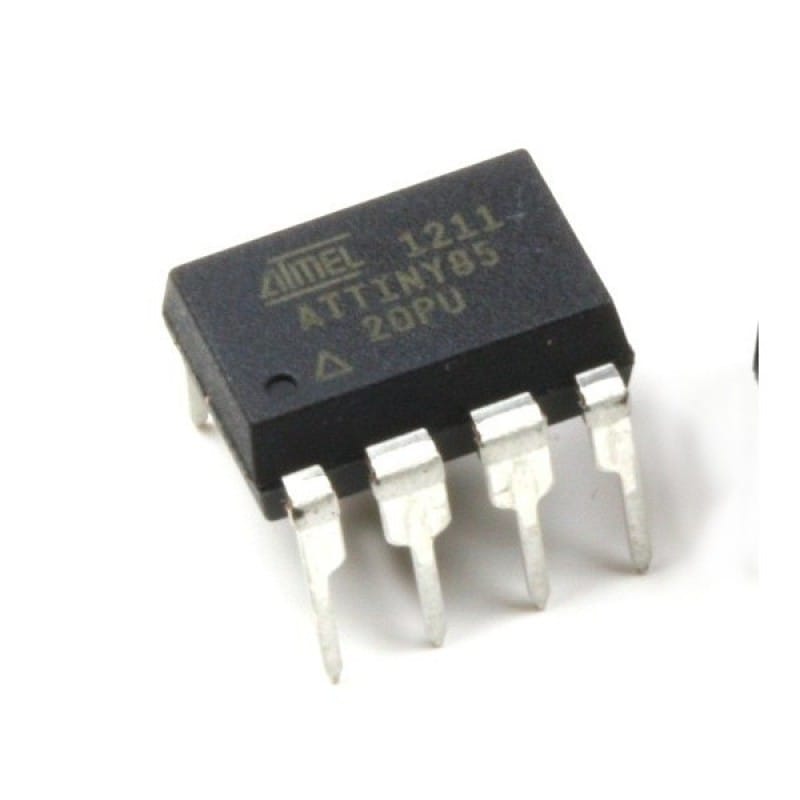

ATtiny85 Microcontroller IC DIP 8

ATtiny85 Microcontroller IC DIP 8

The ATtiny85 is an 8-bit AVR RISC microcontroller developed by Atmel (now Microchip Technology). It belongs to the ATtiny series, which is designed for small, low-power, and cost-effective embedded systems.

The ATtiny85 uses Harvard architecture and a RISC instruction set, allowing most instructions to execute in a single clock cycle. Despite its compact 8-pin DIP package, it integrates Flash memory, SRAM, EEPROM, timers, ADC, PWM, and serial communication, making it suitable for compact control applications and easy prototyping.

Click here to view related products

Features

• 8-bit AVR RISC CPU
• Operating voltage:
• 1.8 V – 5.5 V
• Maximum clock frequency:
• Up to 20 MHz (external clock)
• Program memory:
• 8 KB Flash
• Data memory:
• 512 bytes SRAM
• 512 bytes EEPROM
• I/O pins:
• 6 programmable digital I/O pins
• Timers/Counters:
• Two 8-bit timers
• One high-speed timer with PWM
• Analog features:
• 10-bit ADC with up to 4 channels
• Communication interfaces:
• SPI
• I²C (via USI – Universal Serial Interface)
• PWM outputs
• Interrupt system
• Watchdog Timer (WDT)
• Low-power modes: Idle, ADC Noise Reduction, Power-down
• In-System Programming (ISP)
• Package type: DIP-8 (also available in SMD packages)

Applications

• Compact embedded control systems
• LED blinkers and lighting controllers
• Sensor-based projects
• Battery-powered devices
• Wearable and IoT prototypes
• Robotics and automation
• Educational and DIY (Arduino-compatible) projects
