BD137 is a three layer NPN or PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
• Low saturation voltage
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
|Collector−Emitter Voltage (VCEO)||60V|
|Collector−Base Voltage (VCBO)||60V|
|Continuous Collector Current (Ic)||1.5A|
|Continuous Base Current (Ib)||0.5A|
|DC Current Gain (hFE)||40-250|
|Operating Temperature Range||-65 – 150°C|
|Power Dissipation (Pd)||12.5W|
|Thermal Resistance (ΘJA)||100°C/W|
|Thermal Resistance (ΘJC)||10°C/W|

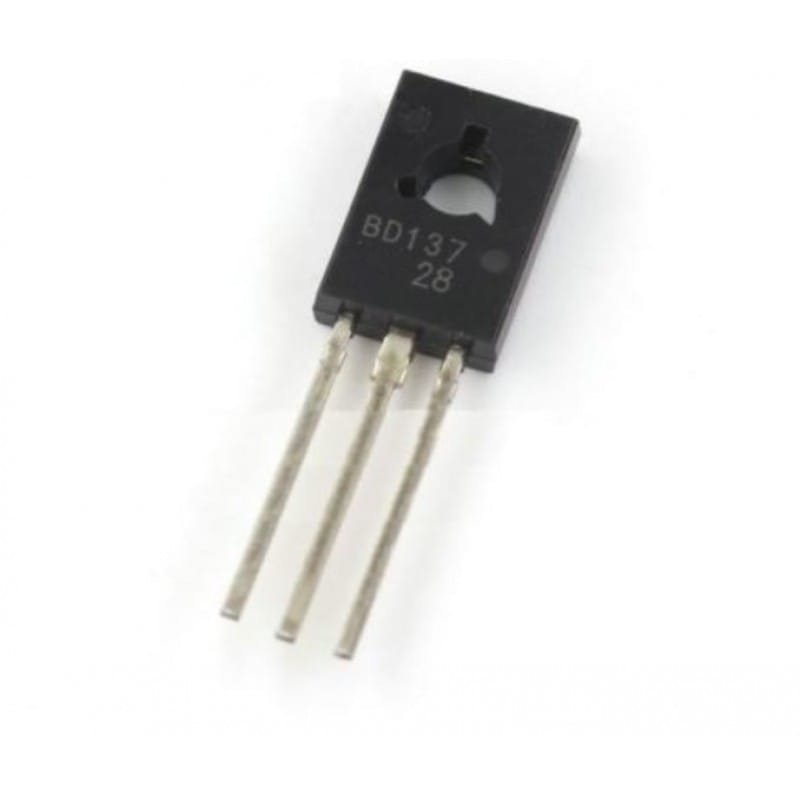

* product image for illustration purposes only. actual product may vary.
