BDX54C PNP Power Darlington Transistor 100V 8A TO-220 Package

The BDX54C is a high-gain PNP Darlington power transistor designed for medium-to-high power switching and amplification applications. With a collector-emitter voltage rating of 100V and a collector current of up to 8A, it delivers excellent current gain, low saturation voltage, and stable thermal characteristics.

Encased in a TO-220 package, the BDX54C ensures efficient heat dissipation and reliable performance under demanding load conditions. Its Darlington configuration provides very high current amplification, enabling it to drive heavy loads using a small base current. This makes it an ideal choice for audio amplifiers, motor drivers, power supplies, and industrial control circuits.

The BDX54C pairs perfectly with the BDX53C (NPN) transistor for complementary push-pull amplifier designs and other balanced power applications.

Click here to view related products

Features:

  • Transistor Type: PNP Silicon Darlington Power Transistor
  • Package: TO-220 (excellent heat conduction and mechanical strength)
  • Collector-Emitter Voltage (V<sub>CE</sub>): 100V
  • Collector Current (I<sub>C</sub>): 8A
  • Power Dissipation (P<sub>tot</sub>): Up to 80W (with proper heatsink)
  • High Current Gain (hFE): 750–5000 (typical Darlington pair value)
  • Low Saturation Voltage: Increases efficiency and reduces heat losses
  • High Thermal Stability: Consistent operation under various thermal conditions
  • Durable & Reliable: Suitable for industrial-grade, continuous-use designs
  • Complementary Pair: Works with BDX53C (NPN)

Applications:

  • Audio Power Amplifiers: Ideal for push-pull output and driver stages
  • Motor Control & Drivers: Suitable for high-efficiency motor and actuator control
  • Voltage Regulators & Power Supplies: Provides stable power regulation
  • Relay & Solenoid Drivers: Handles medium-to-high current switching
  • Industrial Control Circuits: Reliable power switching for automation systems
  • Consumer Electronics: Suitable for use in amplifiers and control boards
  • Complementary Amplifier Designs: Pairs with BDX53C for full push-pull stages
  • Educational & DIY Projects: Excellent for power electronics experimentation

bdx54c-transistor-datasheet

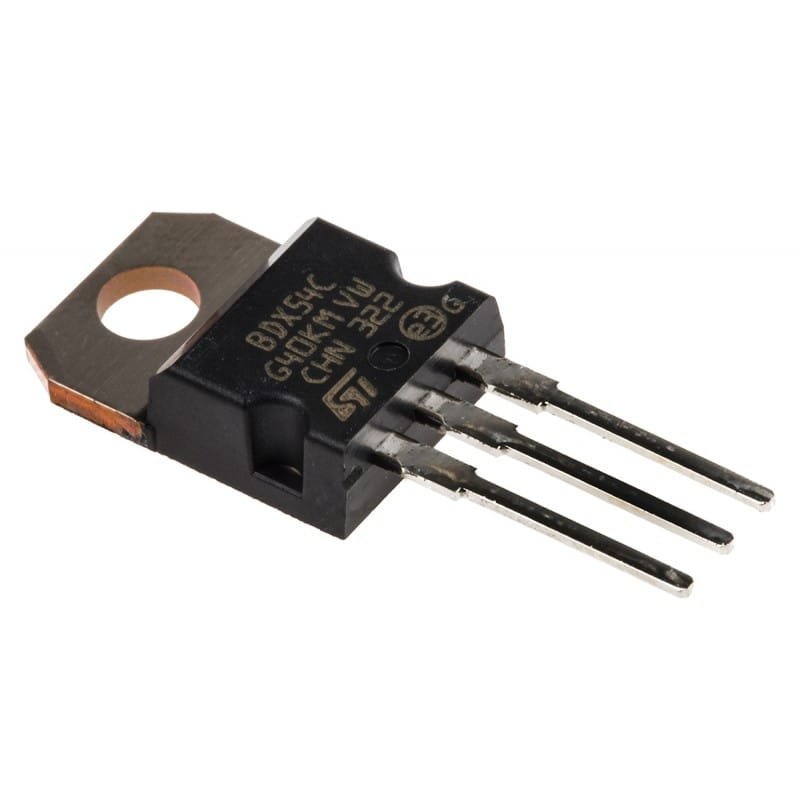

* Product image for illustration purposes only, actual product may vary.
