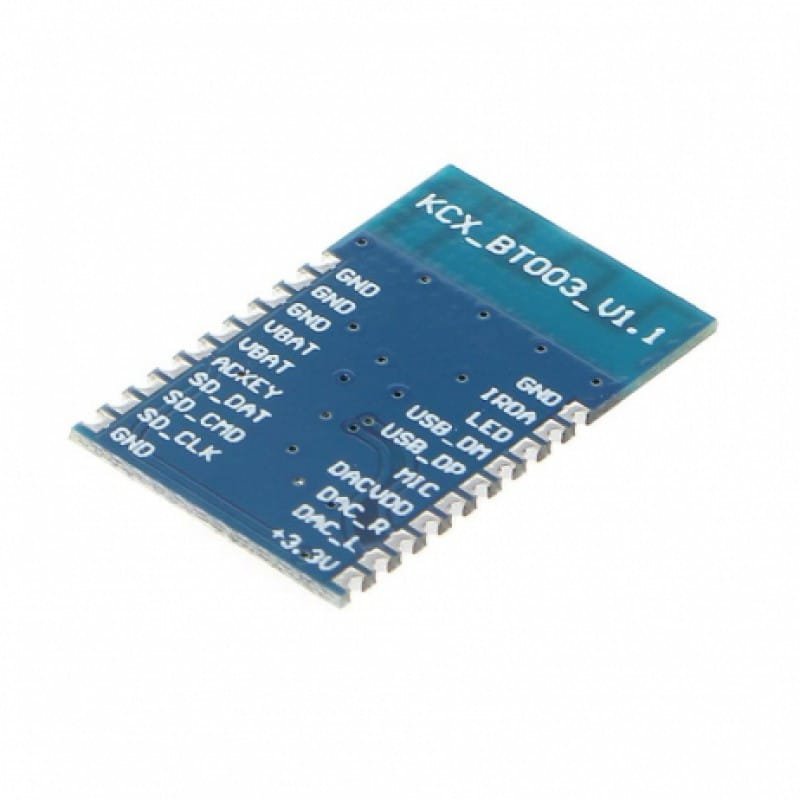

Bluetooth Audio Transmitter Module KCX BT003 V1.1
The KCX BT003 V1.1 is a high-quality Bluetooth 4.2 Audio Transmitter Module designed for wireless stereo audio transmission. It allows analog or digital audio sources—such as MP3 players, televisions, or computers—to stream audio wirelessly to Bluetooth-enabled headphones, speakers, or receivers.
Compact and easy to integrate, this module is ideal for upgrading existing wired audio systems to wireless functionality with minimal effort.
Click here to view the related products
Features:-
- Easy to use
- Bluetooth 4.1 technology, strong versatility
- Intuitive LED indication
- Line input stereo
- A USB data cable is connected to the computer and enumerated into a USB sound card to launch
- Wireless transmission distance >= 10 meter
- Perfectly compatible with all Bluetooth audio receiver boards in this store
- The reserved serial communication port can be customized to realize the connection of the specified device name
specifications:-
| Input Voltage Range(VDC) | 3.3 ~ 5 |
| Max. Operating Current (mA) | 35 |
| Channel | Stereo |
| Bluetooth Version | 4.2 |
| Working Frequency | 2400-2485MHz |
| Receiving Sensitivity | -85dBm |
| Length (mm) | 23 |
| Width (mm) | 15 |
| Height (mm) | 2 |
| Weight (gm) | 0.8 |
Applications
- Wireless audio transmission from TV, amplifier, or PC.
- Bluetooth upgrade for traditional wired speakers or stereos.
- DIY Bluetooth-enabled music player projects.
- Integration into car entertainment systems.
- Audio signal transmission for IoT and embedded systems.
