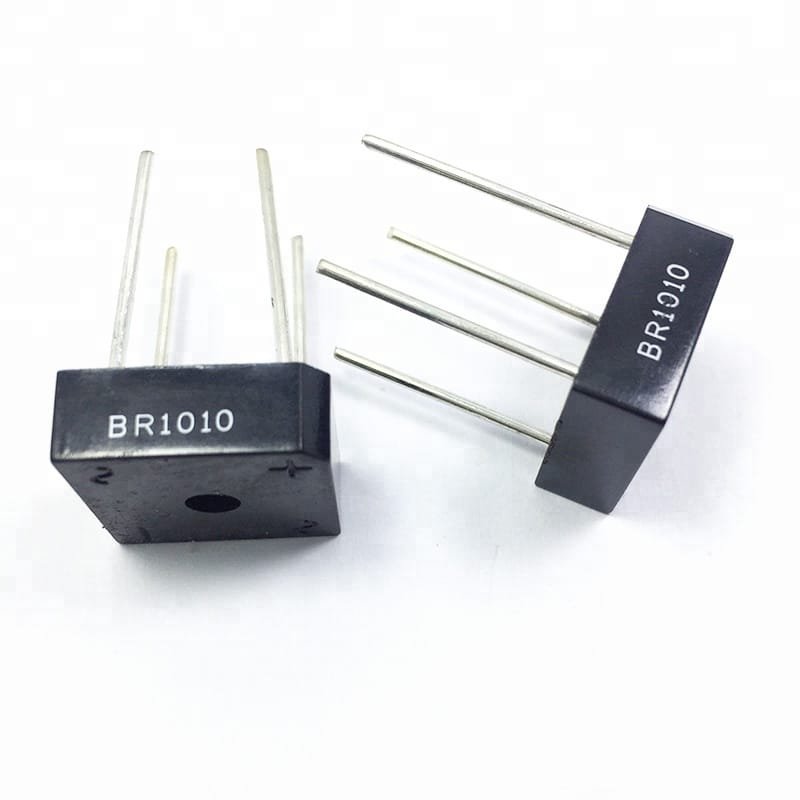

BR1010 Single Phase Bridge Rectifier 1.1V 10A

BR1010 Single Phase Bridge Rectifier 1.1V 10A

The BR1010 is a single-phase bridge rectifier designed for converting AC input into stable DC output in medium-power electronic systems. Rated for 10 amps continuous current and 1000 volts peak reverse voltage, it integrates four rectifier diodes into one compact, reliable full-bridge package.
Its low forward voltage drop (around 1.1V) improves overall efficiency, and the square epoxy-molded package provides excellent durability and heat performance. This rectifier is widely used in power supplies, chargers, motor controls, and general-purpose AC-to-DC conversion.

Click here to view the related products

Features

• Maximum Reverse Voltage (VR): 1000V
• Maximum Forward Current (IF): 10A
• Forward Voltage Drop (VF): ~1.1V
• Package Type: BR / flat square epoxy-encapsulated package
• Integrated full-bridge rectifier (4 internal diodes)
• High Surge Current Capability for AC inrush handling
• Low forward losses ? improves thermal performance
• Clearly marked AC and DC terminals for easy wiring
• High reliability for long-term operation

Applications

• AC to DC Power Supplies (medium-power systems)
• Battery Chargers
• LED Drivers & Lighting Power Supplies
• Motor Drivers & Control Circuits
• HVAC Equipment
• Inverters & UPS Rectifier Stage
• Audio Amplifier Power Supplies
• General AC-to-DC Conversion
