BU205 is a device used to perform solely on specified inputs, to switch the forces of electrons. The unique design of this transistor includes individual electrons bouncing from wedge-shaped obstacles called deflectors. It is used in horizontal deflection output stages for color TV receives.
Features:-
• Low saturation voltage
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Specifications:-
| Collector−Emitter Voltage (VCEO) | 700V |
| Collector−Base Voltage (VCBO) | 600V |
| Continuous Collector Current (Ic) | 2.5A |
| Continuous Base Current (Ib) | 2.5A |
| Operating Temperature Range | -65 – 115°C |
| Power Dissipation (Pd) | 10W |
| DC Current Gain (hFE) | 2 |
| Transition Frequency (fT) | 3MHz |
| Fall Time | 0.75 µs |

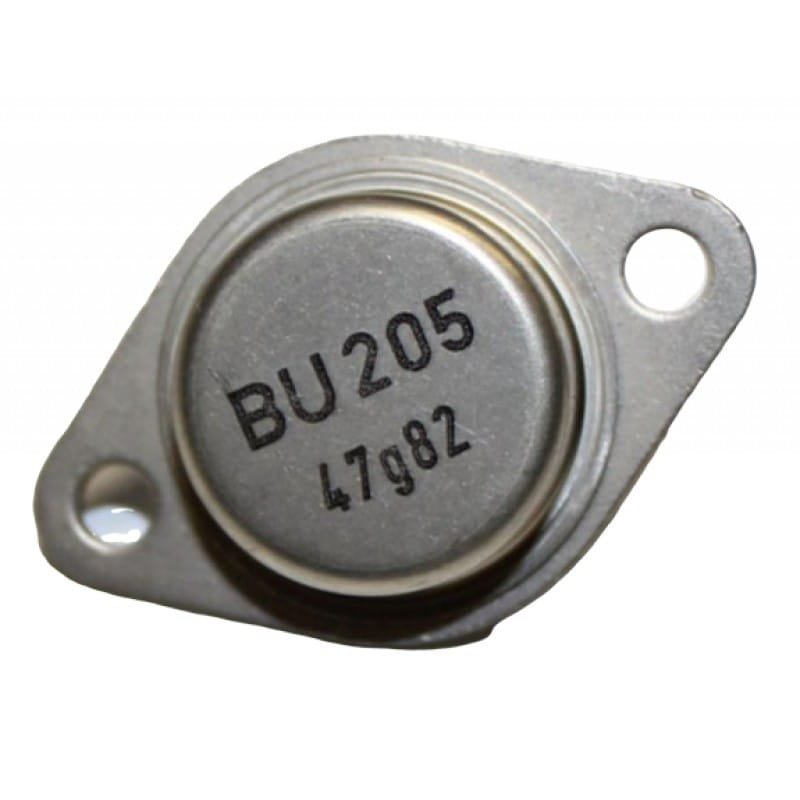

* product image for illustration purposes only. actual product may vary.
