A CD54 4.7uH Surface Mount Power Inductor (4.7 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads for a surface mounting. When we apply a current through the inductor, a magnetic field is generated around it. The magnetic field generated by using a magnetic core will be much much stronger than others.
Applications: Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors.
Features:-
- Ferrite drum core construction.
- Magnetically unshield.
- Moisture Sensitivity Level: 1
- Halogen Free available.
- Solder reflow temperature: 260 peak.
Specifications:-
| Material Core | Ferrite |
| Inductance(uH) | 4.7 |
| Tolerance(%) | 20 |
| Current Rating (A) | 2.8 |
| DC Resistance (DCR)(mΩ) at 20°C | 0.06 |
| Test Frequency (Hz) | 100K/0.3V |
| Mount | Surface Mount. |
| Operating Temperature (°C) | -40 ~ 100 |

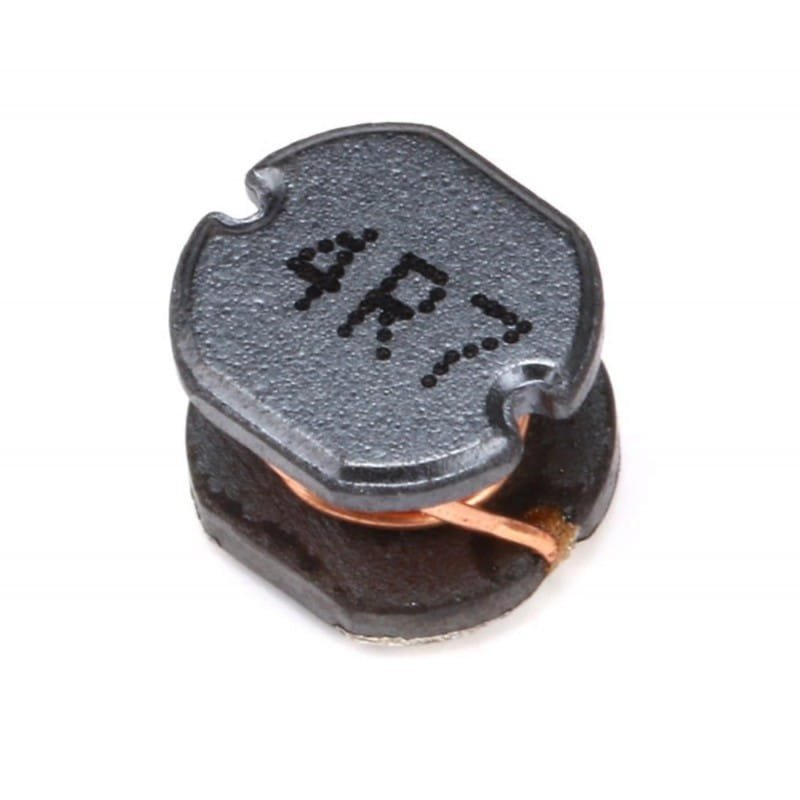

* product image for illustration purposes only. actual product may vary.
