CSP-3000-120 120V 25A 3000W Mean Well Power Supply with Single Output

CSP-3000-120 120V 25A 3000W Mean Well Power Supply with Single Output.

CSP-3000 is a 3KW single output enclosed type AC/DC power supply. This series operates for 180-264VA input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 65 C. Moreover, CSP-3000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Specifications :-

• single output
• output: 3000W
• input voltage: 180 to 264V AC (50Hz), 254 to 370V DC
• maximal input inrush current: 16A
• leakage current: 3mA
• overload protection: 105 to 120%
• withstand voltage I/P-O/P: 3000V AC
• withstand voltage I/P-FG: 2000V AC
• withstand voltage O/P-FG: 500V AC
• operating temperature: -20 to +65°C
• weight: 4000g

CSP-3000 Datasheet

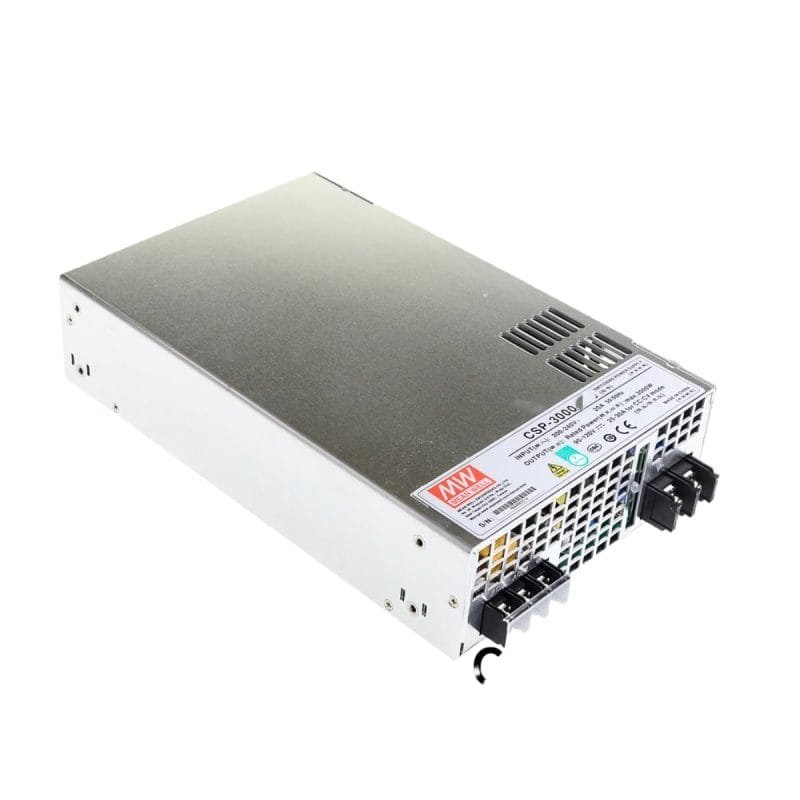

*product image for illustration purposes only. actual product may vary.
