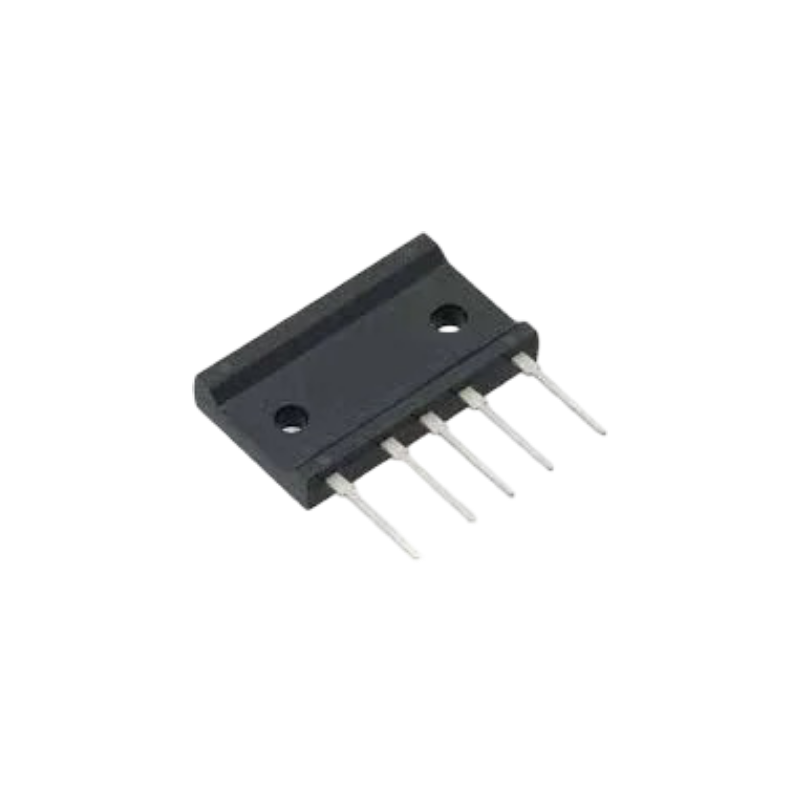

D45XT160 Bridge Diodes 1600V 45A TSB 5pin Package

D45XT160 Bridge Diodes 1600V 45A TSB 5pin Package

The D45XT160 Bridge Diode is a high-performance, high-current, high-voltage rectifier designed for demanding power electronics applications. It integrates four diodes arranged in a bridge configuration to efficiently convert alternating current (AC) to direct current (DC). With a peak repetitive voltage rating of 1600V and a continuous forward current rating of 45A, this bridge diode is capable of handling high-voltage AC input while delivering stable DC output under heavy loads.

Click here to view the related products

Features

• High voltage rating: 1600V
• High current rating: 45A
• Fast recovery bridge diode for efficient AC to DC conversion
• TSB 5-pin package for easy mounting and heat dissipation
• Low forward voltage drop for improved efficiency
• High surge current capability
• Robust and durable design for industrial use
• Stable operation across a wide temperature range

Applications

• High-power AC-DC conversion circuits
• Motor control drives and inverters
• Welding machines and industrial power systems
• High-current power supplies
• Battery charging and rectifier circuits
• UPS (Uninterruptible Power Supply) systems
• Renewable energy systems (solar and wind inverters)
• Power electronics and industrial automation circuits

Advantages

• Handles high voltage and high current reliably
• Fast recovery for reduced switching losses
• Easy to integrate into PCB or heat-sink-mounted designs
• Suitable for both industrial and high-power DIY electronics

D45XT160 Datasheet
