DB25 Female Right Angle Connector 25 Pin PCB Mount

DB25 Female Right Angle Connector 25 Pin PCB Mount

The DB25 Female Right Angle Connector (25 Pin) is a standard D-sub PCB mount connector designed for reliable and compact board-level data connections. With its right-angle pin configuration, it is ideal for applications where space efficiency and secure signal transmission are critical, such as in communication, control, and interface systems.

This connector features 25 nickel-plated female sockets housed in a sturdy metal shell that ensures excellent mechanical strength and EMI protection.
The right-angle pin layout makes it perfect for direct PCB soldering, minimizing cable clutter and allowing a neat and durable connection to circuit boards.
It also includes mounting holes for secure fastening to panels or PCBs, ensuring a stable and professional installation.

Click here to view the related products

Features

• Standard DB25 (25-pin) D-Sub female connector.
• Right-angle PCB mount design for compact layouts.
• Gold or nickel-plated contacts for superior conductivity.
• Durable metal shell provides EMI/RFI shielding.
• Two mounting holes for firm board or panel attachment.
• Compatible with RS-232, RS-422, and parallel port interfaces.
• Ideal for industrial, computer, and communication systems.

Applications

• PCB-mounted serial and parallel communication ports
• Industrial control and data acquisition systems
• Computer interface and expansion cards
• Embedded system boards and controllers
• Robotics and automation equipment

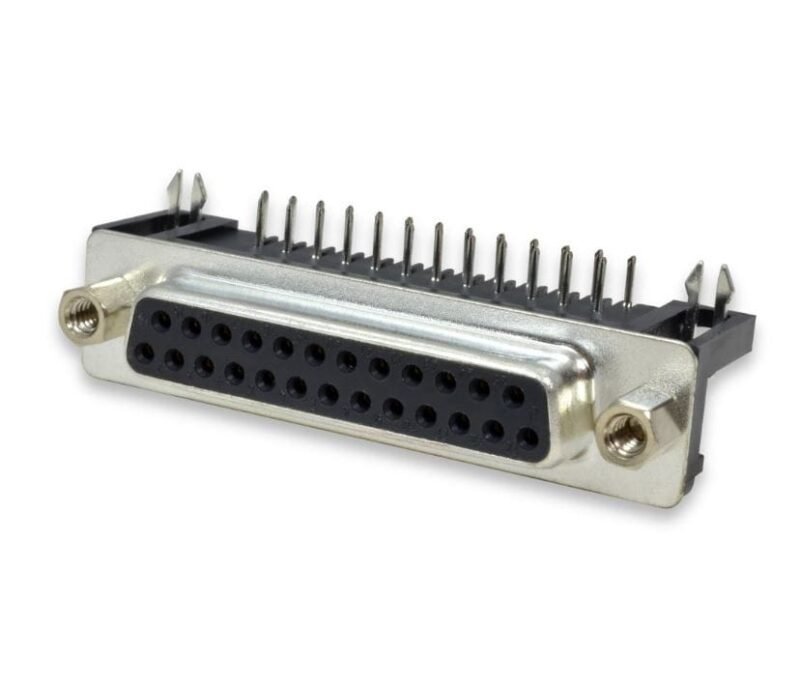

*Product image for illustration purposes only, actual product may vary.
