DIP 3 Color LED Module

82.00 + GST

Category: Tag:
Share with Friends

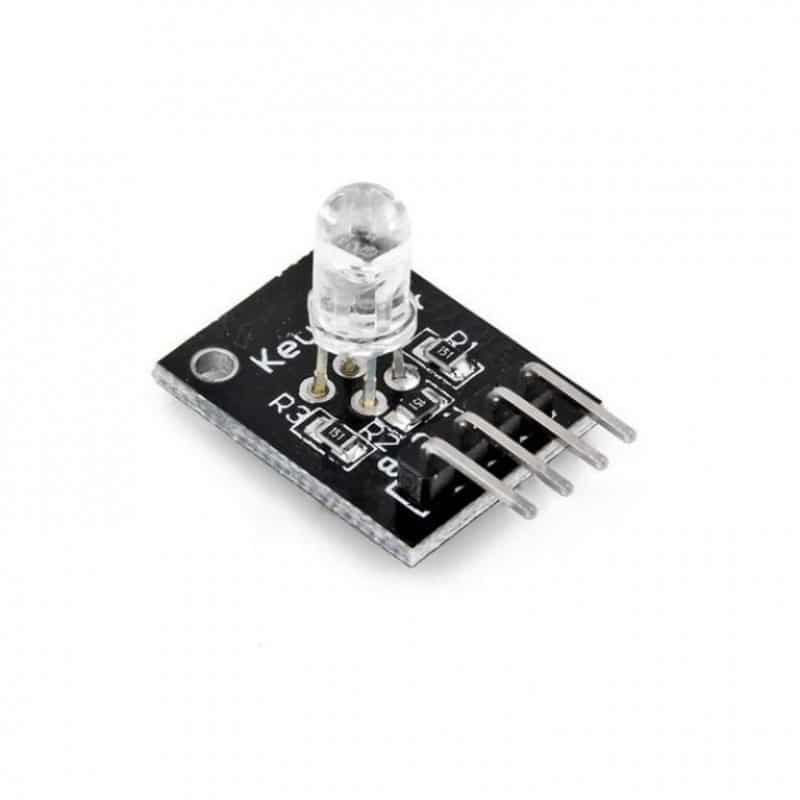

This module consists of a 5mm RGB LED and three150 limiting resistorsto prevent burnout. Adjusting the PWM signal on each colour pin will result in different colours. This is a DIP 3 Color LED Module. Through the PWM adjusting, three primary colours can be mixed to obtain different colours.

Connect the red pin (R) on the KY-016 to pin 11 on the Arduino. Blue (B) to pin 10, green (G) to pin 9 and ground (-) to GND. Notice that you do not need to use limiting resistors since they are already included on the board.

Connection Diagram:

Two-Color Common Cathode LED Module
Pin Connection with Arduino:
LED module Arduino
R Pin11
B Pin 10
G Pin 9
GND

Features :-

  1. The use of plug-in full-colour LED.
  2. RGB trichromatic limiting resistor to prevent burnout.
  3. With a variety of single-chip interface.
  4. Through the PWM adjusting, three primary colours can be mixed to obtain different colours
  5. The working voltage: 5V

Specifications :-

Operating Voltage (VDC) 5
LED Type and Size RGB 5 mm
LED drive mode Common Cathode Driver
PCB Width 1.5mm
Length (mm) 20
Width (mm) 15
Height (mm) 15
Weight (gm) 5

* product image for illustration purposes only. actual product may vary.
