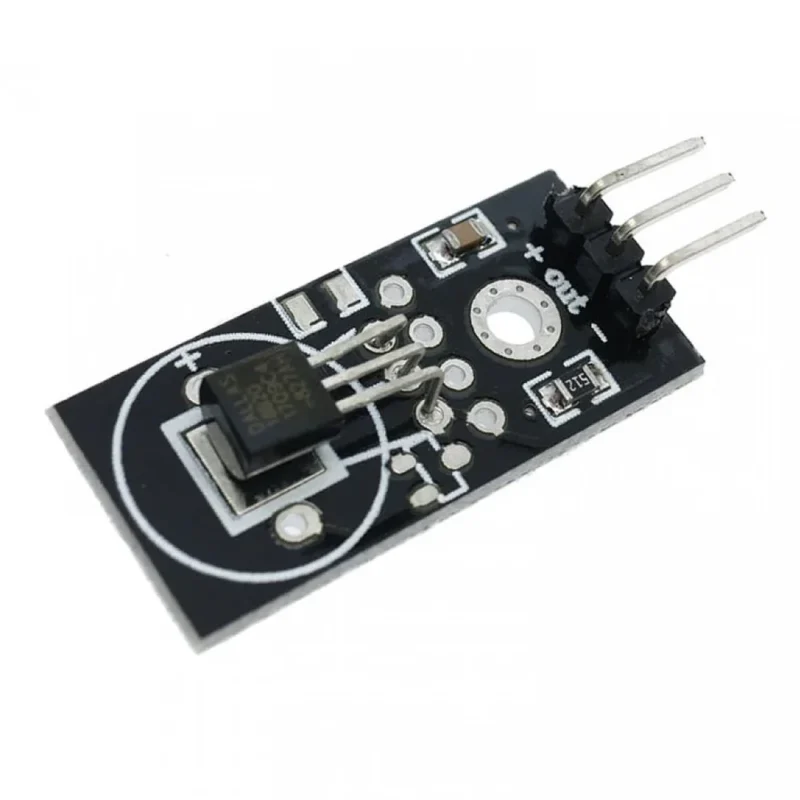

DS18B20 Temperature Sensor Module is a digital temperature sensor, and you can easily connect it to Arduino with only one 4.7-pound resistor, base 1 Ground 2 Output Base 3 to the positive of the source, with resistance to base 2 Is connected. The connection of this sensor to the Arduino via the 1-wire protocol is established. Therefore, several sensors can be connected only through one common wire to Arduino. The output is digitally accurate to 12 bits. Therefore, the temperature can be measured with a precision of 0.0625 C.
Applications:- DS18B20 Temperature Sensor is suitable for the cold storage, granaries, storage tanks, telecommunications room, electric power room, cable trough, and other temperature measurement and control areas; bearing, cylinder, textile machinery, air conditioning, and other small space industrial equipment temperature and control; , Refrigerator, freezer, and low-temperature drying oven, etc. heating/cooling pipe calorie measurement, central air conditioning household thermal energy measurement and industrial temperature measurement and control and Many more..
Features:
- Digital signal output
- 18B20 Temperature Sensor Chip
- Resolution adjustment ranges from 9-12 bytes.
- Send data via a pin
- Temperature measurement ranges: -55C to +125C, be accurate to 0.5C.
specifications:-
Operating supply voltage 3 to 5.5 volts
Digital output Resolution 9 to 12 bits
Temperature measurement ranges -55C to +125C, ( accurate to 0.5C.)
Maximum conversion time and response 750 ms
Length (mm) 19
Width (mm) 15
Height (mm) 6
Weight (gm) 9
* product image for illustration purposes only. actual product may vary.
