DTECH DT-5019 USB To RS422/RS485 Converter Cable 0.5 Meter

DTECH DT-5019 USB To RS422/RS485 Converter Cable 0.5 Meter.

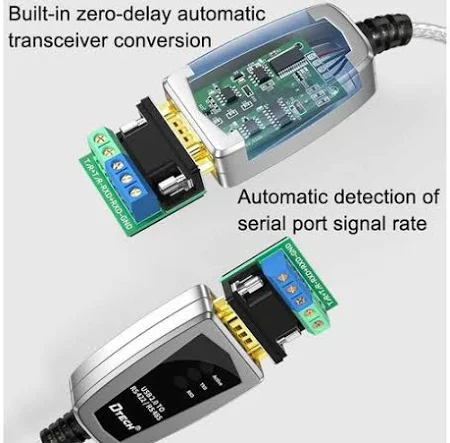

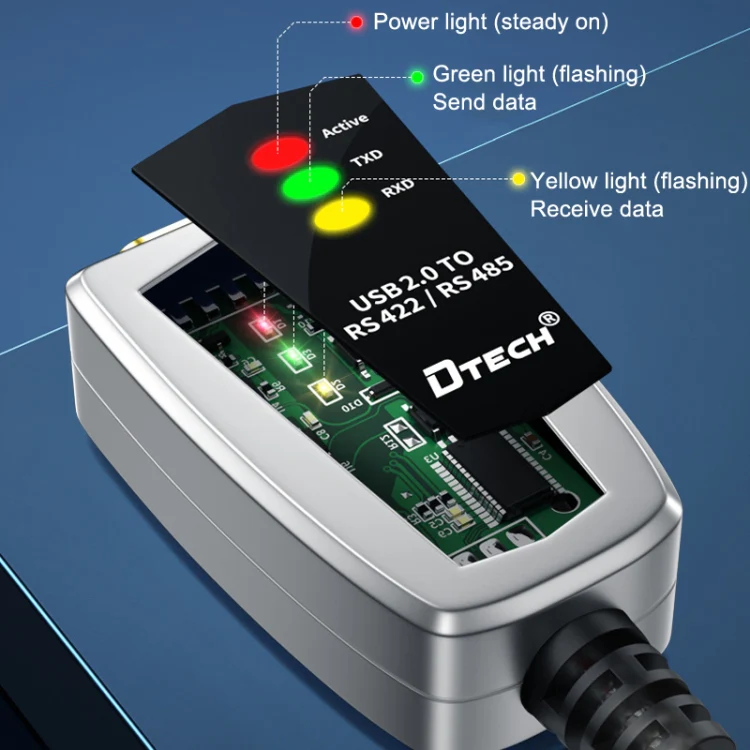

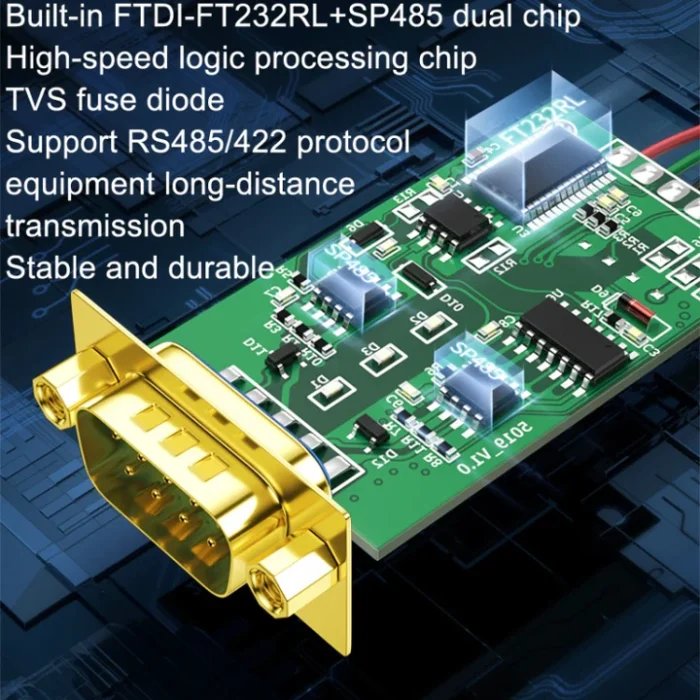

DTECH serial to USB adapter allows you to connect RS422 or RS485 serial devices to the computer via USB, without any troubles like computer freeze, IRQ, DMA or COM port conflict. With noise immunity and multiple drops capability (up to 32), the USB to RS485 converter with FTDI chip supports reliable signal conversion between serial devices and PC. With power, TX, and RX indicators to help you check the connection and communication activity, which is very helpful when troubleshooting. High-quality industrial USB serial dongle features baud rate, zero delays automatic transmission, and automatic hand-shaking protocol, so you can get high-speed data transfer over the serial port. With 600W static surge and 15KV static protection to effectively protect costly and sensitive control equipment against electrical damage.

DTECH DT-5019 Manual Datasheet

Features:

• Direction: Automatic send data control no software drivers need
• Band Rate: 300bps ~115,200bps, automatic test signal rate
• Transmission Distance: RS-485/422 side 1,200m (9,600bps), USB side 5m
• OS Support: Win 10, 8, 8.1, 7, Vista, XP, Linux and Mac
• Input Powered: no external power supply is needed
• Flow Control: RTS/CTS, XON/XOFF
• FIFO: 128bytes
• Loading: 32 nodes or custom 128 nodes
• Cable Length: 0.5 Meter

Specifications:

• Manufacturer Model No: DT-5019
• Manufacturer: DTech

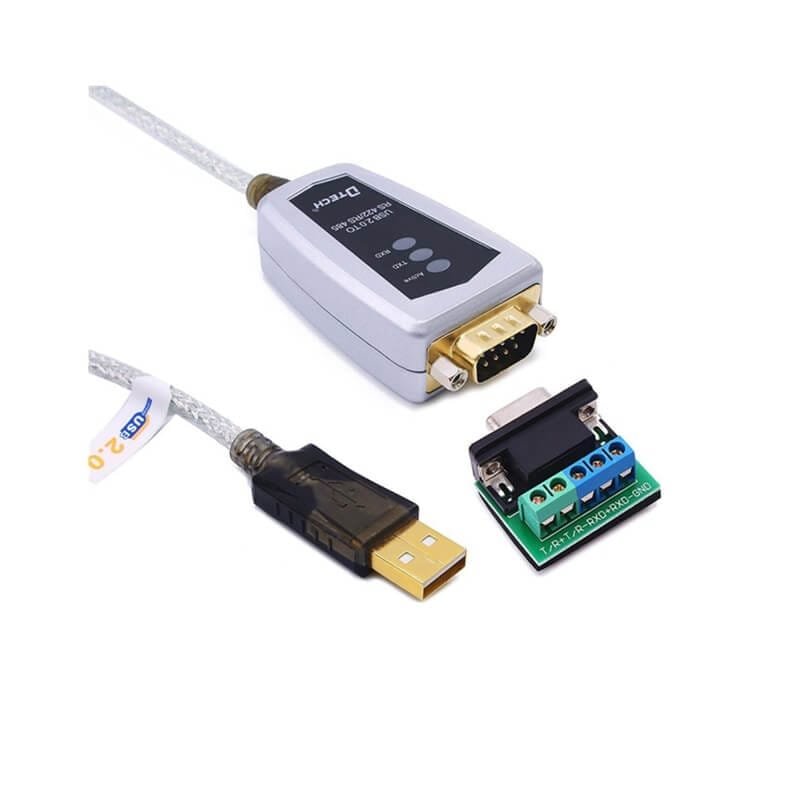

• Connector Type: USB type A Male, DB9 Male
• Speed: 12Mbps(Full-speed USB)
• Interface: Serial
• Serial Standards: RS485, RS422
• Serial Line Protection
• ESD Protection: 15KV Embedded
• Transmission Distance: Up 1200 Meters
• Flow Control: RTS/CTS, XON/XOFF
• Transmission Rate: 921600bps at 300M, 38400bps at 600M, 9600bps at -1.2KM
• Operating Temperature: -20°C ~ 60°C
• Operating Humidity: 5% ~ 95% RH
• Cable Length: 0.5 Meter
