Energy Meter Voltmeter 6 in 1 AC 40-300V 100A Watt Meter-Frequency-Active Power Factor-Current Ampere Voltage Monitoring Device with LCD Display-Digital Watt Meter-Power Consumption Meter

Energy Meter-Voltmeter 6 in 1 AC 40-300V 100A Watt Meter-Frequency-Active Power Factor-Current Ampere Voltage Monitoring Device with LCD Display-Digital Watt Meter-Power Consumption Meter.

Functions :-

• Electrical parameter measurement function: 1.voltage, 2. current, 3. active power, 4. electric energy, 5. frequency, 6. power factor.

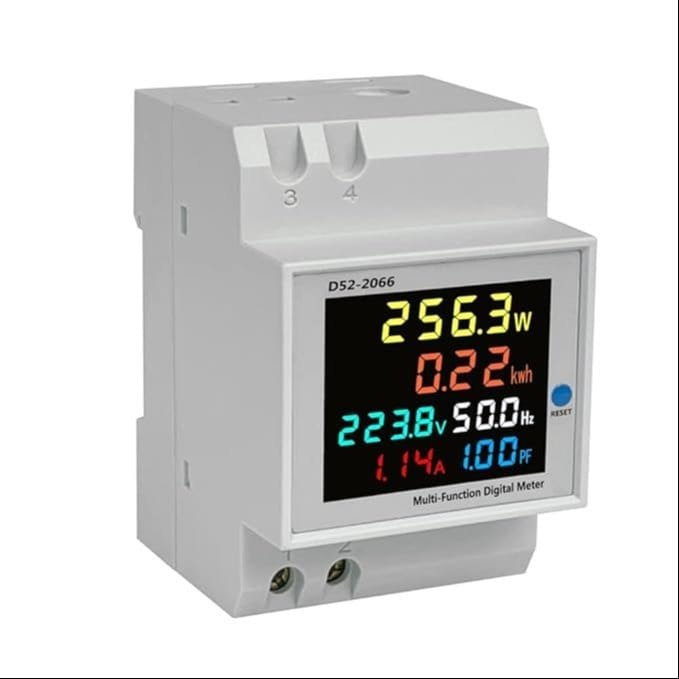

• Din Rail Multifunction Meters JG N52 2066
• Built-in CT: Built-in sensor hole diameter:
  10mm, Orbital installation (Not include the orbit). Wiring is more beautiful and concise
• 6 Different Datas Info Displaying: Simultaneously calculates 6 parameters, including voltage (40-300V), current (0-100A), power (0-30000W), energy (0-99999kWh), frequency (45-65Hz) and power factor (0-1PF).
• 6 in 1 Energy Meter of Voltage Meter, Watt Mater, Ampere Meter, Current Meter, Frequency Meter, Power Factor Meter
• Auto Data Retentionation: When there is a power off, the data in this digital energy meter will be sustained automatically. Reset button can clear the present data and restart the new data supervision.
• Large LCD Screen: Our electricity meter with a large clear backlight LCD display, wide view angle clear visible, make it easy to read and record the data. Great power consumption meter, watt meter for home.
• Durability and Safety: This digital volt meter & amphere meter adopts high quality ABS flame retardant material and high shear rate chip, making it safe and high precision.
• Wide Application: Ideal for energy consumption monitor. Widely applied in home,store, office, school, factory, etc.Specifications:-
• Active Power: 0-45000W
• Electric Energy: 0.00~99999Kwh
• Voltage: AC 40.0~300.0V
• Current: AC 0.00~100.0A
• Frequency: 45.0~65.0Hz
• Power factor: 1.00~0.00PF
• Accuracy: 1?±2 words
• Current Resolution: 0.01A
• Speed: 2 times per second

*product image for illustration purposes only. actual product may vary.
