Flat 1034 Mobile Phone Vibrator
₹34.80 (incl. tax)
In stock
This Flat 1034 Mobile Phone Vibrator Motor is a shaftless vibration motor that is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project.
The motor has a 3M adhesive backing on it for easy mounting and 1.5? leads for making quick connections. Polarity is not important; the motor can run CW or CCW.
This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads.
| Type | 1034 |
| Rated Voltage(V) | 3 |
| Operating Voltage (VDC) | 2.5 ~ 4 |
| Operating Temperature (°C) | -20 to 60 |
| Min. Rated Speed(RPM) | 9000 |
| Max. Rated Current(mA) | 90 |
| Max. Starting Current(mA) | 120 |
*product image for illustration purposes only. actual product may vary.
1 review for Flat 1034 Mobile Phone Vibrator
Only logged in customers who have purchased this product may leave a review.
You may also like…

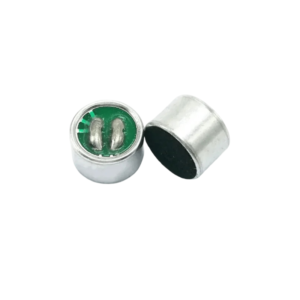

Electret Condenser Microphone
