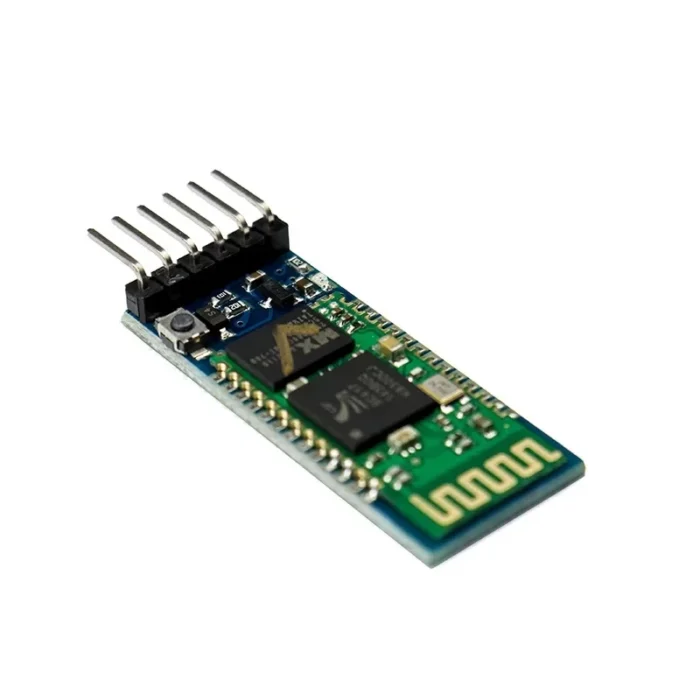

HC 05 Bluetooth Module with TTL Output

HC 05 Bluetooth Module with TTL Output

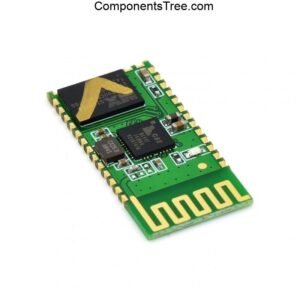

The HC-05 module is based on the CSR BC417 Bluetooth chipset, supporting Bluetooth 2.0 + EDR standards.
It provides transparent serial communication over Bluetooth, making it a reliable choice for wireless data transmission, robot control, home automation, and embedded system projects.

This module includes an onboard 3.3V voltage regulator and logic-level compatible pins that can connect directly to 5V microcontroller systems.
The key pin allows mode selection between AT Command mode (for configuration) and Data mode (for communication).

Click here to view the related products

Specifications:-

• Profiles: Bluetooth serial port Profile
• Bluetooth protocol: Bluetooth Specification v2.0+EDR
• Frequency: 2.4GHz ISM band
• Modulation: GFSK(Gaussian Frequency Shift Keying)
• Emission power: ?4dBm, Class 2
• Sensitivity: ?-84dBm at 0.1% BER
• Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
• Security: Authentication and encryption
• Power supply: +3.3VDC 50mA
• Working temperature: -20 ~ +75Centigrade
• Dimension: 26.9mm x 13mm x 2.2 mm

Advantages

• Plug-and-play serial communication
• Dual-mode operation (Master/Slave)
• Reliable wireless range and low latency
• Compatible with all popular development boards
• Configurable parameters using simple AT commands

Applications

• Wireless serial data communication
• Arduino and Raspberry Pi projects
• Bluetooth-controlled robots or vehicles
• Home automation and IoT systems
• Wireless programming or monitoring
• PC-to-microcontroller communication
