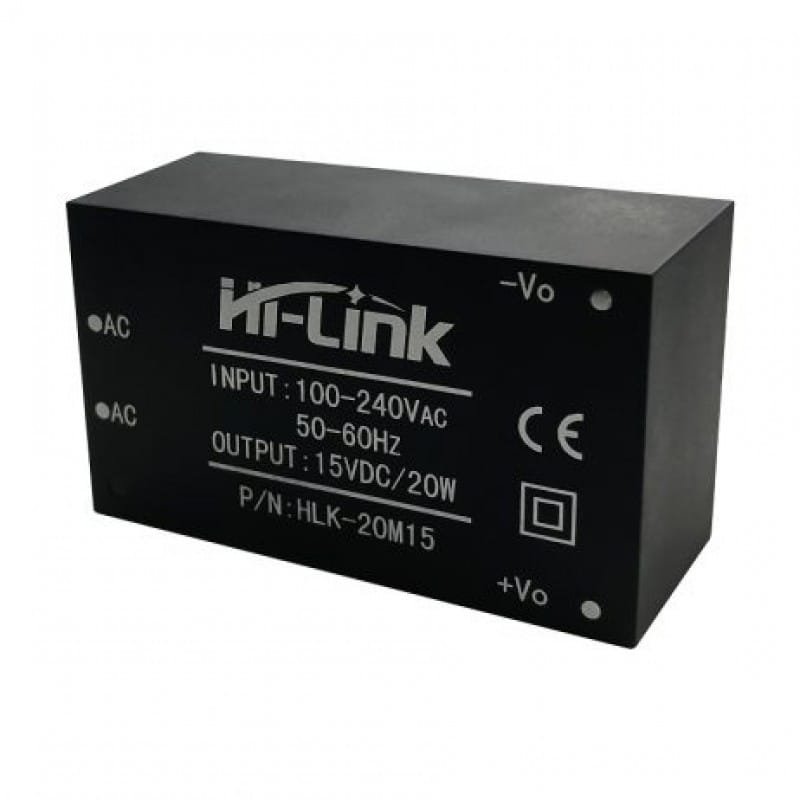

HLK 20M15 Hi-Link 15V 20W AC to DC Power Supply Module

HLK 20M15 Hi-Link 15V 20W AC to DC Power Supply Module

The HLK?20M15 is an isolated AC-to-DC switch-mode power supply module that converts 100–240?V AC mains into a stable 15?V DC output at up to 20?W (?1.3?A). Its compact, PCB-mountable design provides a space-efficient solution for powering medium-power electronic loads directly from the mains without bulky transformers or adapters. The module is highly efficient, reliable, and includes built-in protections, making it ideal for embedded, industrial, and consumer applications.

Click here to view related products

Features

• Universal AC input: 100–240?V AC
• Regulated 15?V DC output at ~1.3?A (20?W)
• Input-to-output isolation for safety
• High efficiency with low heat generation
• Low ripple and noise output suitable for sensitive circuits
• Built-in short-circuit and overload protection (auto recovery)
• Compact, PCB-mountable form factor (~57 × 33 × 22.5?mm)
• Low no-load power consumption (<0.1?W)
• Complies with UL/CE/EMC safety standards

Applications

• Industrial control systems and automation equipment
• Communication and networking hardware
• Instrumentation and test devices
• Smart home and building automation power supplies
• Consumer electronics requiring mid-power DC
• Embedded systems and microcontroller-based devices
• Security and monitoring systems
• LED drivers and display units
