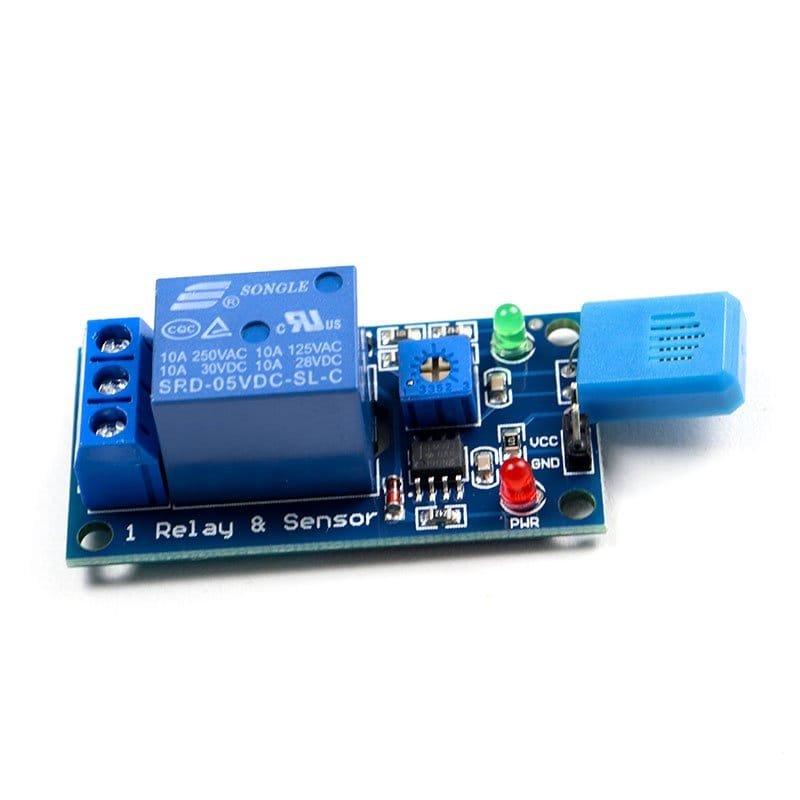

Humidity Sensitive Switch Relay Module

165.00 + GST

Share with Friends

It is a Humidity Sensitive Switch Relay Module. The module uses a high-quality HR202 humidity sensor. The comparator output directly drives the relay to connect 220V AC or other equipment. With potentiometer to adjust the detection threshold. The sensor interface can be equipped with a pin and a wet sensor with a lead.

Specifications :-

Maximum Voltage(V) 250V AC
Supply Current (A) 150mA
Trigger Voltage (VDC) 5
Switching Voltage (VAC) 250@10A
Switching Voltage (VDC) 30@10A
Opt. Relative Humidity(RH) 20% 85%
Storage condition () 65 to 125
Operating Temperature (C) -40 to 80
Length (mm) 64
Width (mm) 26
Height (mm) 17

* product image for illustration purposes only. actual product may vary.
