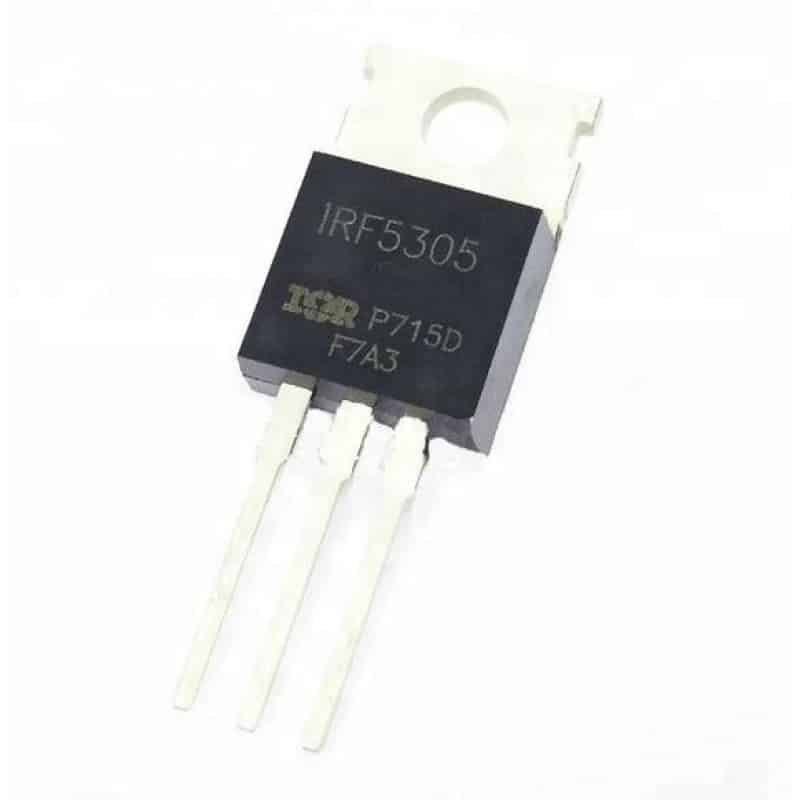

IRF5305 MOSFET 55V 31A P Channel HEXFET Power TO-220 Package

IRF5305 MOSFET 55V 31A P Channel HEXFET Power TO-220 Package

The IRF5305 is a high-current P-Channel HEXFET Power MOSFET designed for low-voltage, high-current switching applications. Rated at 55V and 31A, it provides low on-resistance (RDS(on)), fast switching, and excellent thermal performance, making it ideal for high-efficiency power supplies, motor controllers, automotive electronics, and general-purpose load switching.

Encased in a TO-220 package, the IRF5305 ensures efficient heat dissipation, mechanical durability, and reliable mounting, providing stable operation in high-current, low-voltage circuits. Its HEXFET design guarantees maximum efficiency, minimal conduction losses, and robust performance.

Click here to view the related products

• Type: P-Channel HEXFET Power MOSFET
• Drain-Source Voltage (Vds): 55V
• Continuous Drain Current (Id): 31A
• Package Type: TO-220
• Features:
• High-current handling capability (31A)
• Low RDS(on) for energy-efficient switching
• Fast switching suitable for high-frequency applications
• Excellent thermal and avalanche ruggedness
• Durable TO-220 packaging for heat management and mounting

Applications

• Switch Mode Power Supplies (SMPS): Efficient low-voltage, high-current DC–DC conversion
• Motor Drives: AC/DC motor control for industrial and automotive systems
• Automotive Electronics: Battery management, power distribution, and load switching
• UPS Systems: High-current switching for backup power
• Industrial Automation: Heavy-duty power control in machinery and robotics
• Power Amplifiers and LED Drivers: Efficient high-current load switching
