IRF9510 MOSFET 100V 4A P Channel Power

IRF9510 MOSFET 100V 4A P Channel Power

The IRF9510 is a high-performance P-channel power MOSFET designed for efficient switching applications. With a 100V drain-source voltage and 4A continuous drain current, it offers robust performance in power control circuits. The TO-220AB package ensures effective heat dissipation and is suitable for through-hole mounting.

Click here to view the related products

Key Specifications:

• Drain-Source Voltage (Vds): -100V
• Continuous Drain Current (Id): -4A (at 25°C)
• Gate-Source Voltage (Vgs): ±20V
• On-Resistance (Rds(on)): Approximately 1.2? at -10V gate drive
• Gate Charge (Qg): 8.7nC at -10V
• Power Dissipation (Ptot): 43W (at 25°C)
• Operating Temperature Range: -55°C to +175°C
• Package Type: TO-220AB

Applications:

• Switch Mode Power Supplies (SMPS): Efficient power conversion with minimal losses.
• DC-DC Converters: Stable voltage regulation for sensitive electronics.
• Motor Control Circuits: Precise control of motor speed and direction.
• General-Purpose Switching: Ideal for lighting, amplification, relay driving, and more.
• High-Speed Switching Applications: Suitable for circuits requiring rapid response times.

IRF9510 MOSFET Datasheet

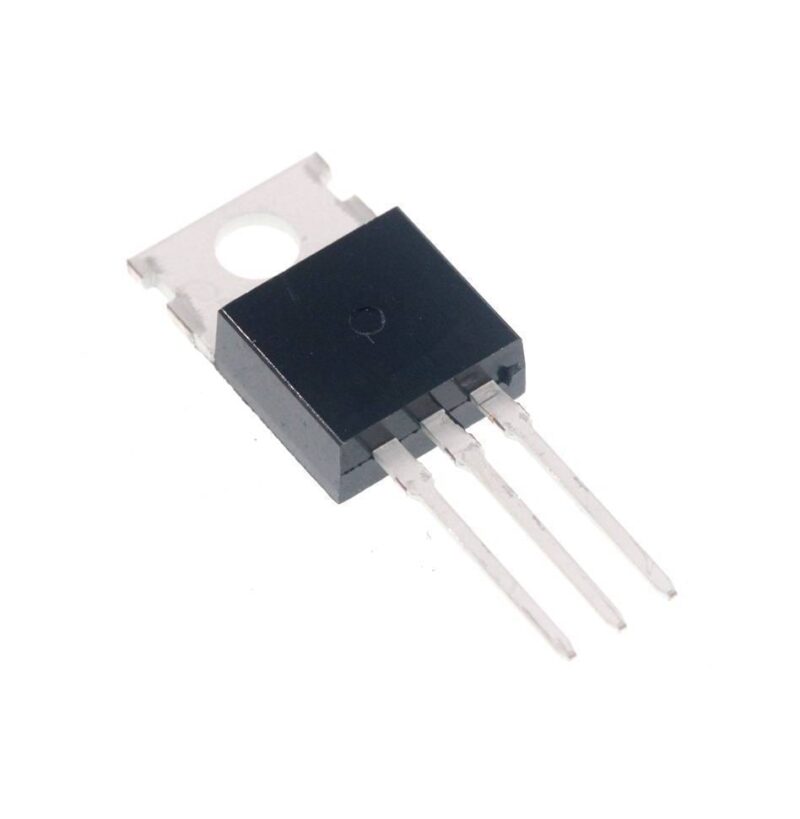

*Product image for illustration purposes only, actual product may vary.
