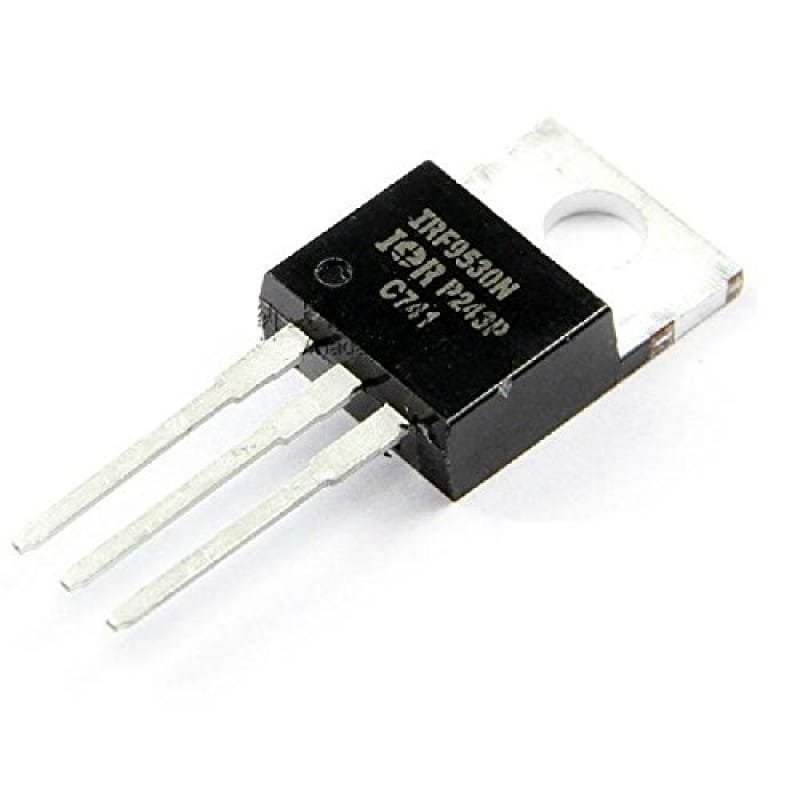

IRF9530 MOSFET 100V 14A P Channel Power TO-220 Package

IRF9530 MOSFET 100V 14A P Channel Power TO-220 Package

The IRF9530 is a high-performance P-channel MOSFET designed for efficient power switching applications. With a 100V drain-source voltage and 14A continuous drain current, it offers robust performance in power control circuits. The TO-220AB package ensures effective heat dissipation and is suitable for through-hole mounting.

Click here to view the related products

Key Specifications:

• Drain-Source Voltage (Vds): -100V
• Continuous Drain Current (Id): -14A (at 25°C)
• Gate-Source Voltage (Vgs): ±20V
• On-Resistance (Rds(on)): Approximately 0.2Ω at -10V gate drive
• Gate Charge (Qg): Approximately 16.7nC at -10V
• Power Dissipation (Ptot): 88W (at 25°C)
• Operating Temperature Range: -55°C to +150°C
• Package Type: TO-220AB

Applications:

• Switch Mode Power Supplies (SMPS): Efficient power conversion with minimal losses.
• DC-DC Converters: Stable voltage regulation for sensitive electronics.
• Motor Control Circuits: Precise control of motor speed and direction.
• General-Purpose Switching: Ideal for lighting, amplification, relay driving, and more.
• High-Speed Switching Applications: Suitable for circuits requiring rapid response times.

irf9530-mosfet-datasheet

*Product image for illustration purposes only, actual product may vary.
