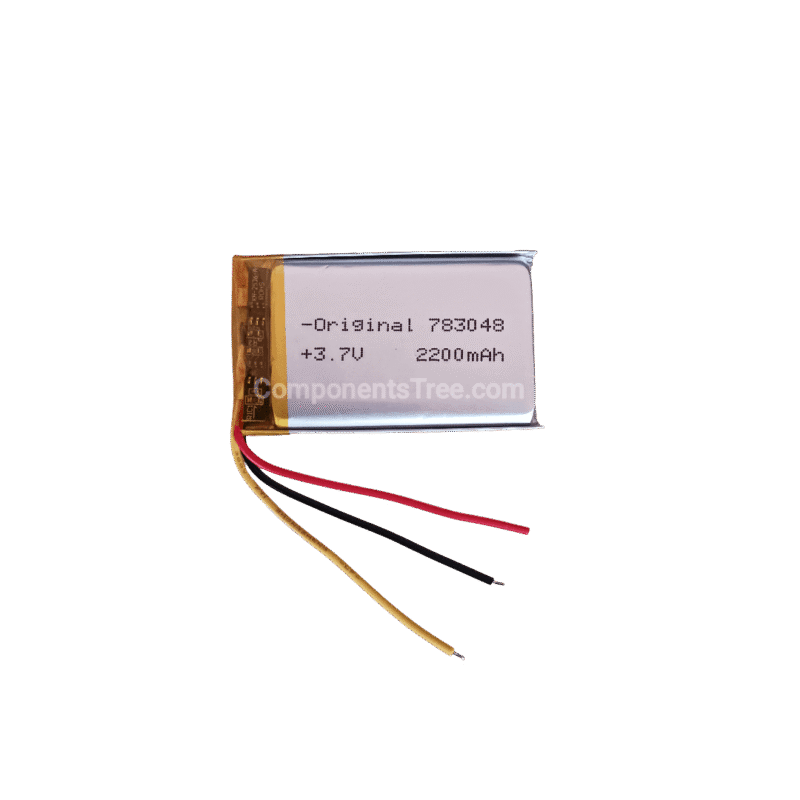

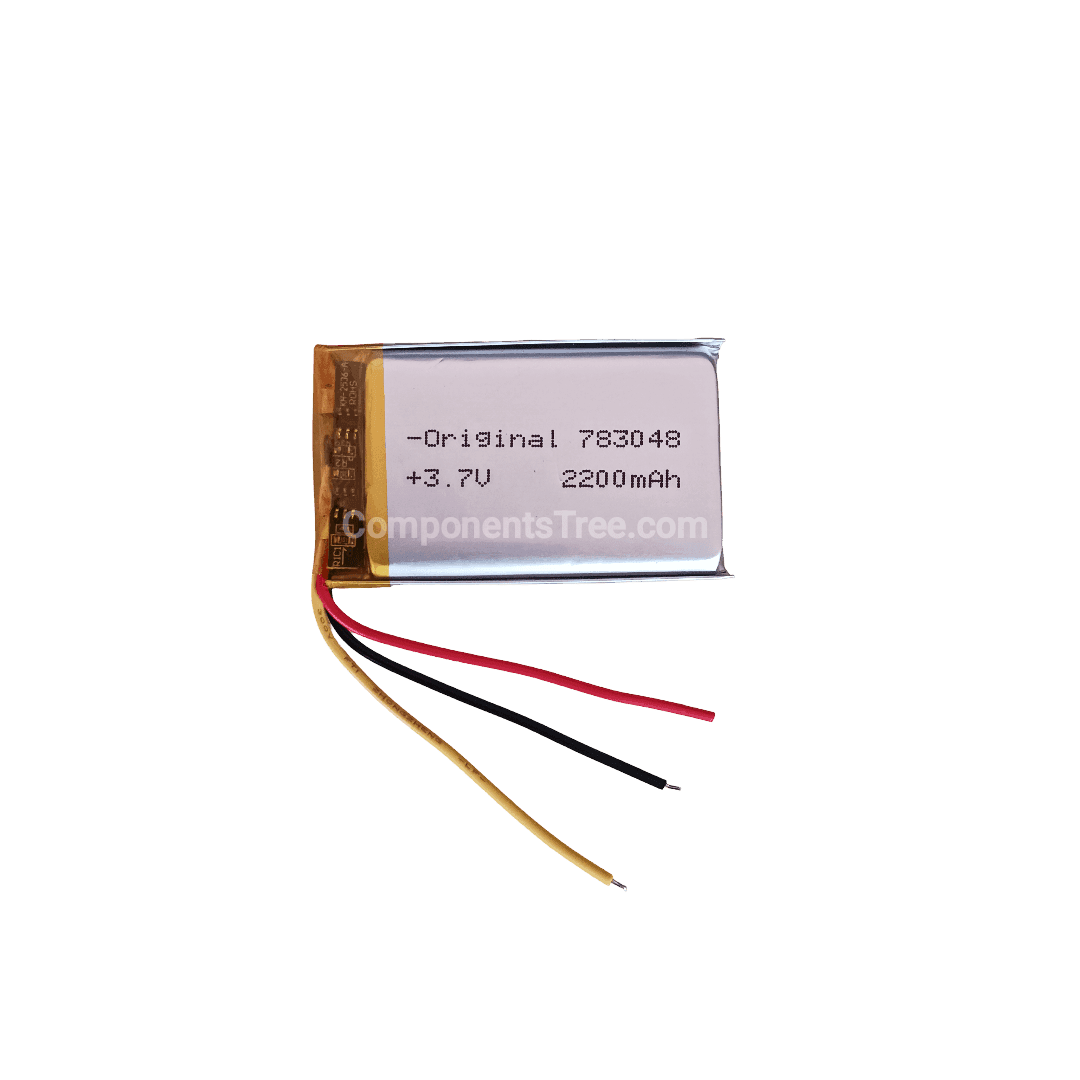

Lithium Polymer Lipo Rechargeable Battery Model 783048 3.7V 2200mAH (3 Wire)

Lithium Polymer Lipo Rechargeable Battery Model 783048 3.7V 2200mAH (3 Wire)

The 783048 3.7V 2200mAh Lithium Polymer Battery is a high-capacity, rechargeable Li-Po cell designed for portable electronics and devices that require stable and reliable power. This model comes with a 3-wire connection (positive, negative, and balance/thermistor wire), making it ideal for devices with built-in battery management systems or for precise voltage monitoring and charging.

With a 2200mAh capacity, this battery provides long operating time in compact form factor. The model number 783048 represents approximate dimensions of 7.8mm (thickness) × 30mm (width) × 48mm (length), making it suitable for medium-sized gadgets. Premium Li-Po chemistry ensures high energy density, low self-discharge, stable output voltage, and long cycle life. Optional PCM/BMS protection circuitry safeguards against overcharge, over-discharge, and short circuits.

Click here to view the related products

Features

• Nominal Voltage: 3.7V
• Capacity: 2200mAh
• 3-wire design for balance/temperature monitoring
• High energy density in a compact form
• Stable discharge for sensitive electronics
• Low self-discharge rate
• Long cycle life for repeated usage
• Optional PCM/BMS protection for enhanced safety
• Slim and lightweight design

Specifications

• Model: 783048
• Chemistry: Lithium Polymer (Li-Po)
• Nominal Voltage: 3.7V
• Capacity: 2200mAh
• Max Charge Voltage: 4.2V (CC/CV Li-Po charging)
• Approx. Dimensions: 7.8 × 30 × 48 mm
• Wiring: 3 wires (Positive, Negative, Balance/Thermistor)
• Operating Temperature:
• Charge: 0°C to 45°C
• Discharge: –20°C to 60°C
• Weight: Moderate, varies by batch

Applications

• Bluetooth headsets and mini audio devices
• IoT sensors and smart modules
• Wearable electronics and fitness trackers
• Portable medical instruments
• Handheld gadgets and wireless controllers
• DIY electronics and robotics projects
• Devices with battery monitoring or balance charging
• Microcontroller-based portable systems
