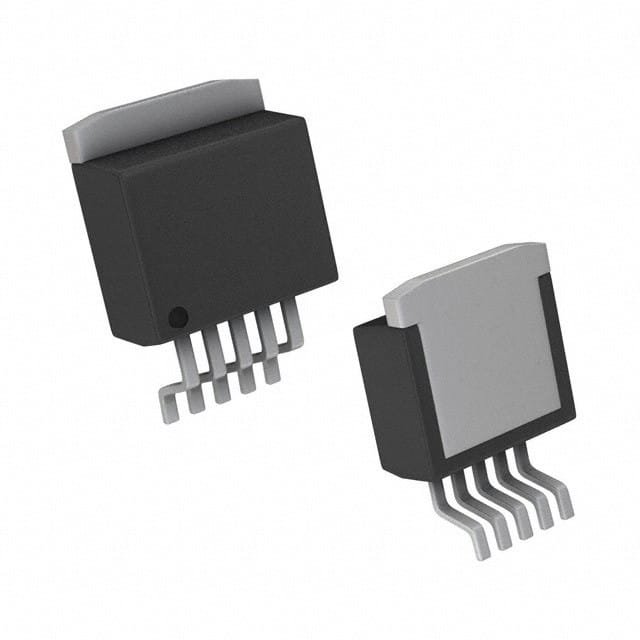

LM2596-5.0 (IL2596-5.0) 3A 5V Fixed Voltage Regulator SMD IC TO-263-5L Package

LM2596-5.0 (IL2596-5.0) 3A 5V Fixed Voltage Regulator SMD IC TO-263-5L Package

The LM2596-5.0 (also known as IL2596-5.0) is a high-efficiency step-down (buck) switching voltage regulator designed to provide a fixed 5V output with up to 3A output current. Using switching regulation technology, it offers much higher efficiency than linear regulators, significantly reducing heat dissipation and making it ideal for DC-DC power conversion applications.

This IC integrates the switching transistor, oscillator, control, and protection circuitry into a single package, requiring only a few external components to build a complete and efficient power supply. It is housed in a TO-263-5L (D²PAK) surface-mount package, providing excellent thermal performance for compact, high-power designs.

Click here to view related products

Applications

• DC-DC step-down (buck) converters
• 5V regulated power supplies
• Embedded systems and microcontroller power supplies
• Industrial control systems
• Automotive electronics
• Battery-powered equipment
• Distributed power systems
• Post-regulation for unregulated DC supplies

Features

• Output Voltage: Fixed 5V
• Output Current: Up to 3A
• Regulator Type: Step-down (Buck) switching regulator
• High efficiency compared to linear regulators
• Package: TO-263-5L (SMD / D²PAK)
• Requires few external components
• Built-in current limiting and thermal shutdown protection
• Wide input voltage range
• Good line and load regulation
• High reliability and stable operation

LM2596 IC Datasheet
