MAX30102 Pulse Oximeter Heart Rate Pulse Sensor Module

MAX30102 Pulse Oximeter Heart Rate Pulse Sensor Module.

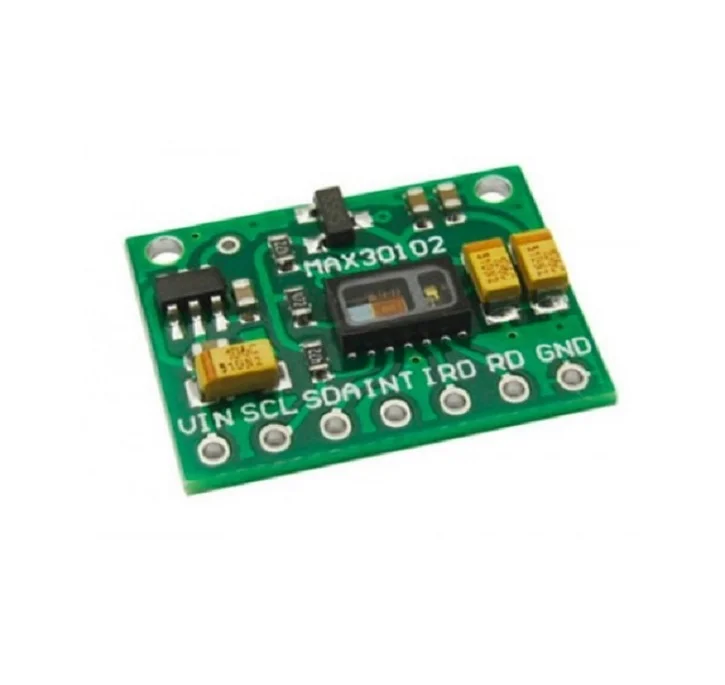

The MAX30102 Pulse Oximeter and Heart Rate Pulse Sensor Module is an integrated sensor solution designed to measure heart rate and blood oxygen saturation (SpO?) levels accurately. It uses advanced optical technology with red and infrared LEDs along with a photodetector to sense variations in light absorption through blood vessels, which correspond to pulse and oxygen levels. The module is ideal for wearable health devices, fitness trackers, and biomedical monitoring projects.

It communicates easily with microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi using the I²C interface and operates efficiently on 3.3V to 5V power supply.

Click here to Buy Max30100 Sensor

Features:

• Sensor Chip: MAX30102
• Measurement Parameters: Heart rate and SpO? (oxygen saturation)
• Operating Voltage: 1.8V to 5.5V (typically 3.3V or 5V)
• Communication Interface: I²C
• Integrated Components: Red & infrared LEDs, photodiode, optical elements, and low-noise electronics
• On-board power regulation and level shifting for easy compatibility with 3.3V/5V systems
• Compact size and easy-to-use 4-pin header

Pin Configuration:

Key Advantages:

• Accurate and reliable heart rate and SpO? readings
• Low power consumption suitable for portable and wearable devices
• Fully compatible with Arduino libraries (e.g., Adafruit MAX30102, SparkFun MAX3010x)
• Compact module for quick integration into health or fitness projects

Applications:

• Pulse oximeters and heart rate monitors
• Fitness and wellness tracking devices
• Health monitoring systems
• Wearable biomedical electronics
• IoT-based health applications
