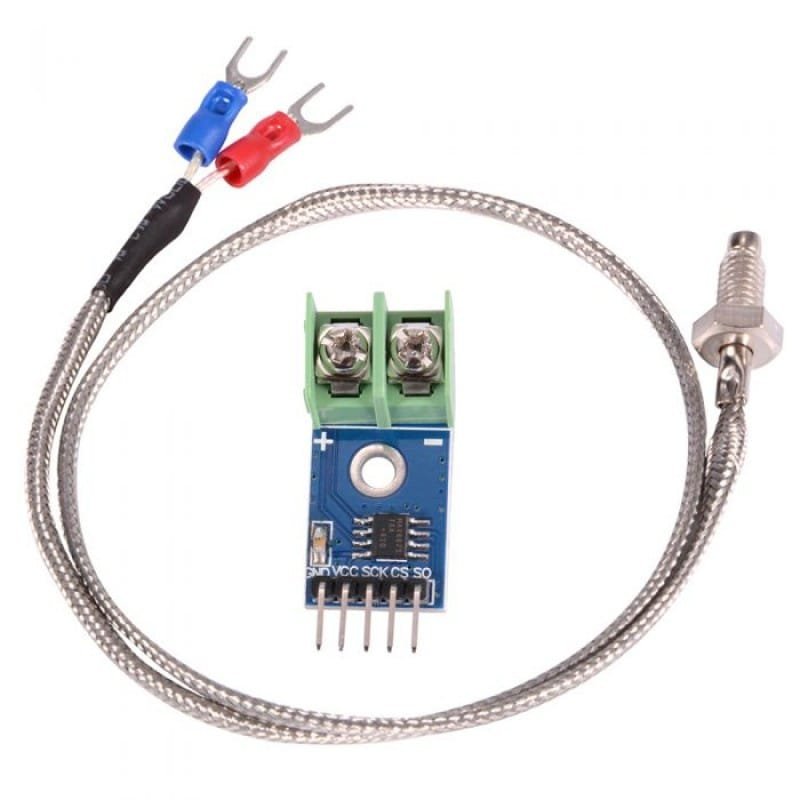

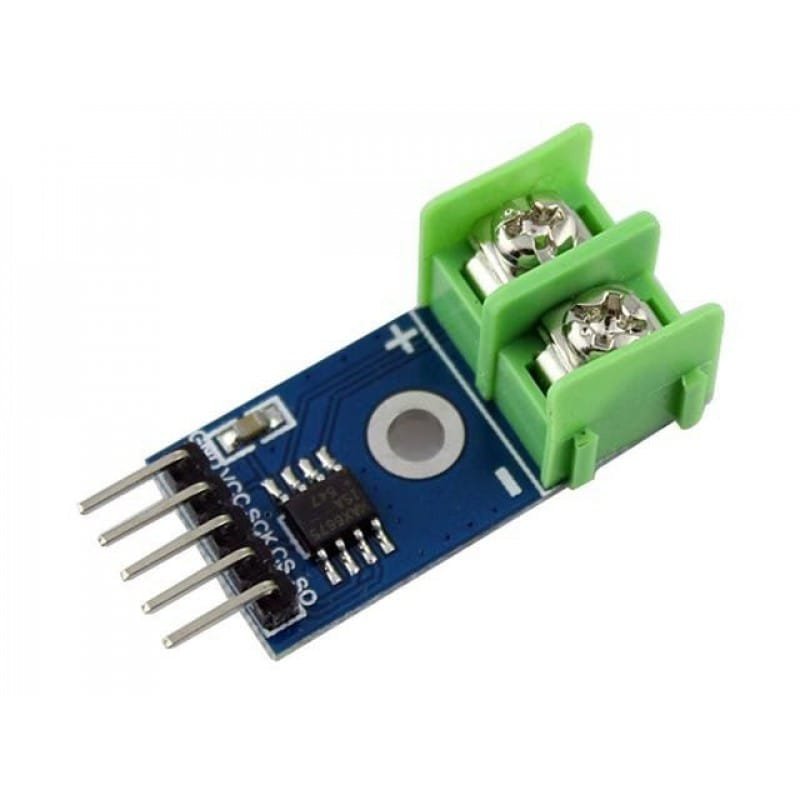

MAX6675 Module with K Type Thermocouple Sensor

MAX6675 Module with K Type Thermocouple Sensor

The MAX6675 Thermocouple Temperature Measurement Module is a high-accuracy digital temperature interface designed to work with K-type thermocouples. It converts the small analog voltage generated by the thermocouple into a stable, cold-junction-compensated 12-bit digital value, which can be easily read by microcontrollers such as Arduino, ESP32, Raspberry Pi, STM32, AVR, and others.

The module communicates through SPI (Serial Peripheral Interface) and provides reliable temperature readings from 0°C to 1024°C, making it ideal for industrial, high-heat, and scientific applications. The included K-type thermocouple probe allows measurement of high temperatures where normal sensors (NTC, thermistors, DHT11/22, DS18B20) cannot operate.

Click here to view the related products

Features :-

• Internal integrated cold junction compensation circuit;
• Temperature signal can be converted into 12-bit digital
• Embedded thermocouple break detection circuitry.
• K-type temperature probe
• Simple SPI serial output temperature.
• High impedance differential inputs.
• Thermocouple break detection.
• 2000V of ESD signal.

Applications

• Industrial temperature monitoring
• Soldering station temperature control
• 3D printer hot-end temperature measurement
• Heaters and furnace monitoring
• Scientific experiments and thermal testing
• Automotive exhaust or engine temperature monitoring
• Food processing and oven temperature sensing
• Boiler or kiln temperature tracking
• High-temperature machinery monitoring
• DIY projects requiring accurate high-heat measurement
