MCP41010 8 Bit Digital 10K Potentiometer with SPI Interface IC
The MCP41010 is a single-channel, 8-bit digital potentiometer (digipot) designed by Microchip Technology. It provides 256 discrete wiper positions for precise analog signal adjustment using a 10kΩ resistive network. The device is digitally controlled via an SPI-compatible serial interface, allowing microcontrollers and digital systems to adjust resistance electronically without mechanical wear or manual tuning.
This makes the MCP41010 ideal for replacing traditional mechanical potentiometers in applications requiring automatic calibration, remote control, or digital precision.
Click here to view related products
Features:-
- 256 taps for each potentiometer
- Potentiometer values for 10 kΩ, 50 kΩ and 100 kΩ
- Single and dual versions
- SPI™ serial interface (mode 0,0 and 1,1)
- ±1 LSB max INL & DNL
- Low power CMOS technology
- 1 µA maximum supply current in static operation
- Shutdown feature open circuits of all resistors for maximum power savings
- Single supply operation (2.7V – 5.5V)
- Industrial temperature range: -40°C to +85°C
- Extended temperature range: -40°C to +125°C
Specification:-
| Parameter | Specification |
| VDD | 7.0V |
| All inputs and outputs w.r.t. VSS | -0.6V to VDD +1.0V |
| Storage temperature | -60°C to +150°C |
| Ambient temp. with power applied | .-60°C to +125°C |
| ESD protection on all pins | ≥ 2 kV |
Applications
- Audio volume control (digitally adjustable gain)
- Sensor calibration and trimming
- Programmable voltage divider circuits
- Automatic tuning and offset adjustment
- Digital-to-analog conversion (simple DAC applications)
- Variable gain amplifiers (VGA)
- LED dimming and contrast control
- Remote and precision analog control systems

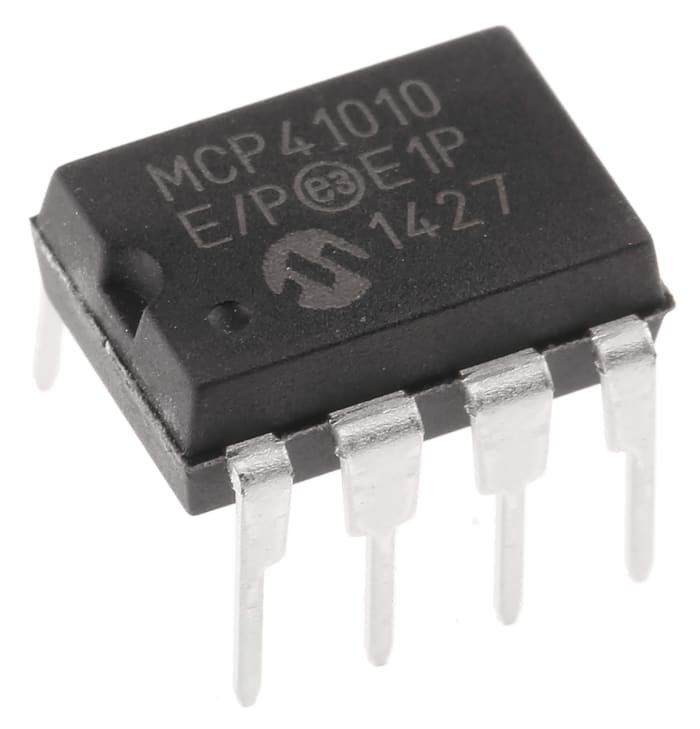

*Product image for illustration purposes only, actual product may vary.
