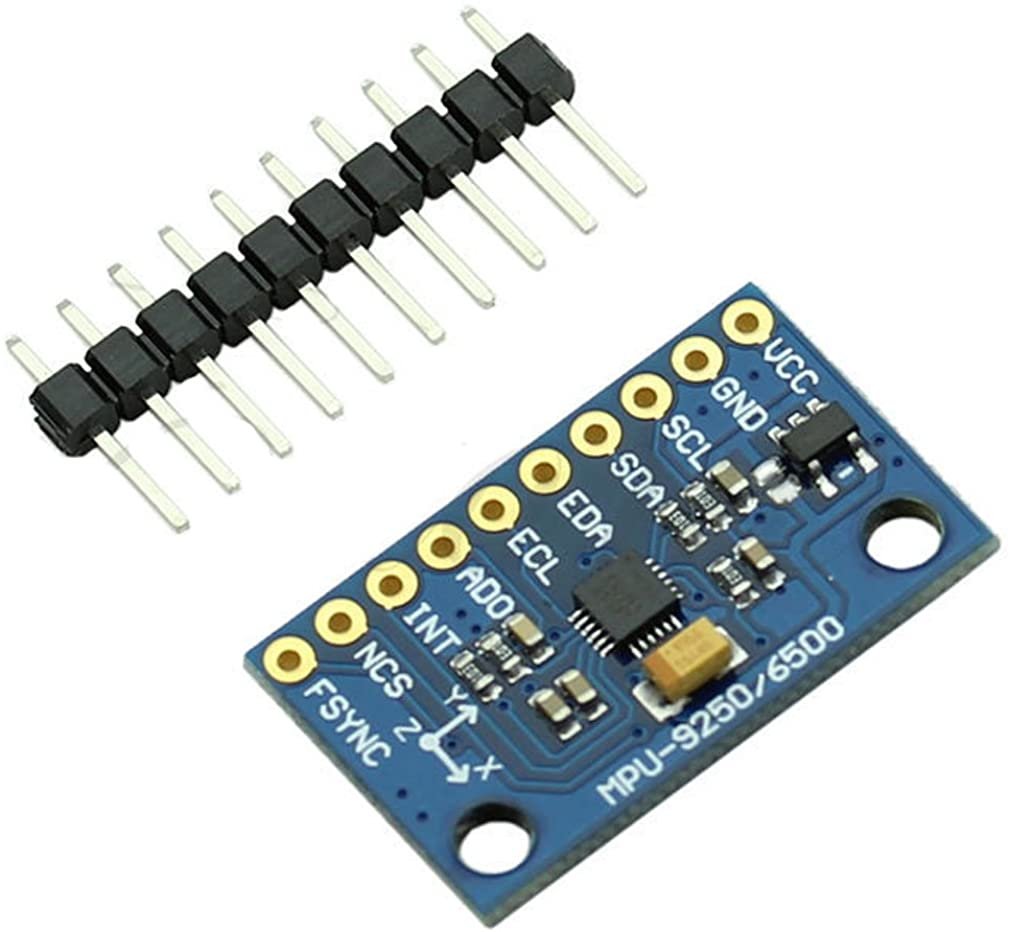

MPU9250 Gyro Accelerometer Module 9 Axis

MPU9250 Gyro Accelerometer Module 9 Axis.

The MPU9250 is a compact and high-performance 9-axis motion tracking module that integrates a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer in a single chip. It provides accurate orientation, motion, and position data, making it ideal for robotics, IoT, drones, and gesture-based applications.

Built with I2C/SPI communication, the module ensures easy interfacing with Arduino, ESP32, Raspberry Pi, and other microcontroller platforms. Its low-power consumption and high-resolution sensors offer stable readings even in fast-moving or high-vibration environments.

Key Features

• 9-Axis Sensor Fusion: Gyro (X, Y, Z) + Accelerometer (X, Y, Z) + Magnetometer (X, Y, Z)
• High Accuracy: 16-bit ADC for precise and stable outputs
• Gyroscope Range: ±250 / ±500 / ±1000 / ±2000 °/s
• Accelerometer Range: ±2g / ±4g / ±8g / ±16g
• Magnetometer Range: ±4800 µT
• Communication Interfaces: I2C (up to 400kHz), SPI
• Low Power Consumption: Suitable for battery-powered devices
• On-board Digital Motion Processor (DMP): For advanced sensor fusion
• Operating Voltage: 3.3V (most breakout boards include a regulator)

Applications

• Drones and UAV flight control
• Robotics and autonomous navigation
• Gesture and motion detection
• VR/AR tracking systems
• Wearable devices
• Inertial measurement and orientation sensing
• Smartphone & gaming controller development

*product image for illustration purposes only. actual product may vary.
