NSP-1000-24 Mean Well 24V 41.7A 1000W AC/DC High Reliable Multi-Industrial Enclosed Type Power Supply

NSP-1000-24 Mean Well 24V 41.7A 1000W AC/DC High Reliable Multi-Industrial Enclosed Type Power Supply

Key Features

• Universal 85~305VAC input range with active PFC function
• Medical safety approved (2xMOPP) with extremely low leakage current for BF applications
• Delivers 200% peak power (2000W) for up to 5 seconds to drive heavy transient loads
• Output voltage (0~120%) and constant current level (0~100%) are fully programmable
• Active current sharing up to 4000W (3+1) for massive power scaling
• Built-in CANBus (standard) or MODBus (optional) for intelligent system integration
• Ultra-low profile 1U design (41mm height) with thermostatically controlled cooling fan

Specifications

• Category: Medical / Industrial Enclosed PS
• Input Voltage: 85~305Vac / 120~431Vdc
• Output Voltage: 24Vdc (Programmable 0~120%)

NSP-1000 Datasheet

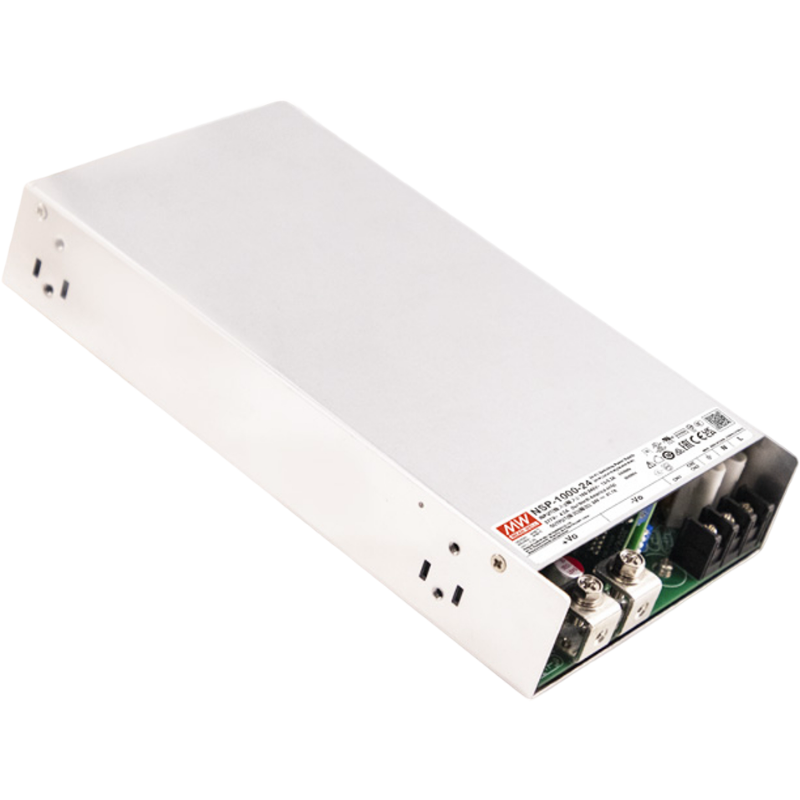

*Product image for illustration purposes only, actual product may vary.
