(Pack of 5 ) FR107L 1000V 1A Fast Recovery Diode SOD 123FL Package

(Pack of 5 ) FR107L 1000V 1A Fast Recovery Diode SOD 123FL Package

The FR107L is a 1A, 1000V Fast Recovery Rectifier Diode designed for high-speed switching and efficient rectification in compact circuits. With a fast reverse recovery time (typically ~500ns), this diode is ideal for switching power supplies, adapters, chargers, and protection circuits where quick recovery is essential.

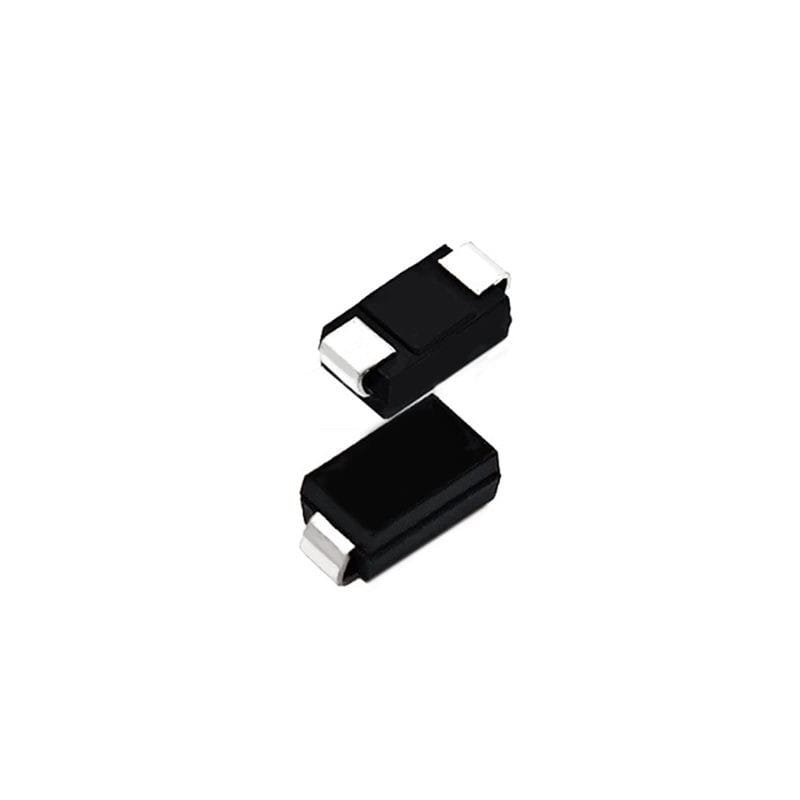

Housed in a SOD-123FL surface-mount package, the FR107L provides excellent electrical performance in a small footprint, making it suitable for modern, space-constrained PCB designs. This pack of 5 diodes is suitable for prototyping, repairs, and production use.

Click here to view the related products

Features

• Maximum reverse voltage: 1000V
• Forward current rating: 1A
• Fast reverse recovery time (approx. 500ns)
• Surface-mount SOD-123FL package
• Low forward voltage drop
• High reliability and long-life performance
• Suitable for high-frequency switching circuits
• Low leakage current

Applications

• High-frequency switch-mode power supplies (SMPS)
• AC-to-DC and DC-to-DC converters
• Flyback, boost, and buck converter rectification
• Freewheeling diode for inductive loads
• Reverse polarity protection
• Chargers, adapters, and portable power devices
• LED drivers and low-power lighting circuits
• General-purpose fast rectification in SMD designs

Advantages

• Fast recovery improves switching efficiency
• Small SMD package saves PCB space
• High-voltage rating suitable for demanding circuits
• Low power loss due to low forward drop
• Reliable operation in both high-frequency and general-purpose designs
• Pack of 5 provides value for hobbyists and small-scale projects

FR107 SMD Diode Datasheet
